Boss FZ-2 Hyper Fuzz MIT Silver Label

Boss FZ-2 Hyper Fuzz – 1996 Silver Label

Professor’s Notes

A versatile variation of the Univox Super Fuzz circuit with two distinct modes and active EQ that also happens to be the king of detuned heavy filth. All hail the king.

Condition

This effects pedal is in Excellent condition with minor signs of use. This does not impact sound or functionality. The serial number dates to October 1995. This unit has been thoroughly cleaned and tested with 9v battery and compatible power supply. All functions are operational. The original box and instructions are not included.

Specifications

Input Impedance: 1M Ohm

Output Impedance: 1k Ohm

Recommended Load Impedance: 10k Ohm or greater

Residual Noise: -70dBm (IHG-A, Typ.)

Power Supply: 9V DC, 9v battery, AC Adaptor (BOSS PSA Series: Optional)

Current Draw: 16mA (9V DC)

Dimensions: 70(W) x 55(H) x 125(D) mm, 2 3/4(W) x 2 3/16 (H) x 4-15/16(D) inches

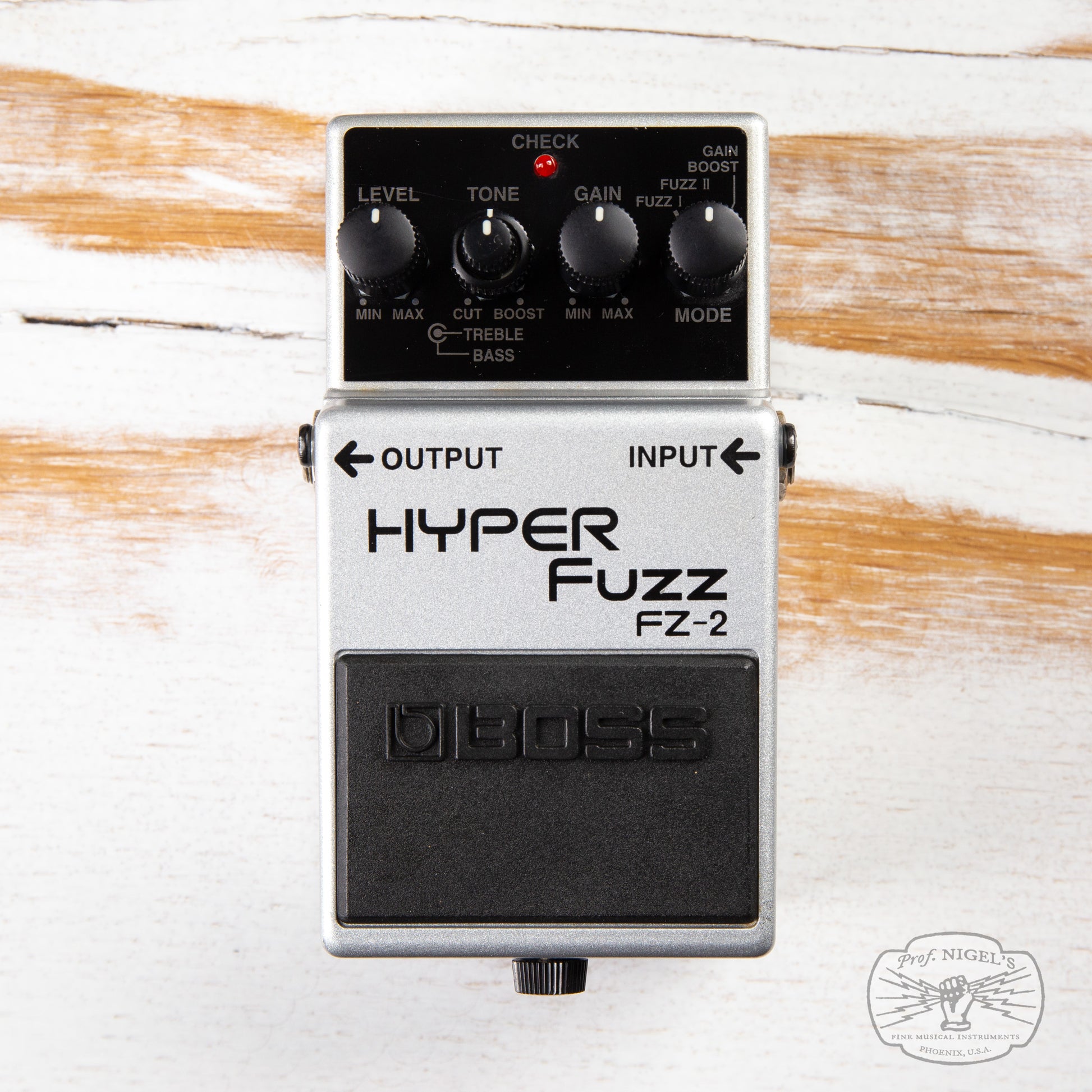

Controls: LEVEL, TONE, GAIN, MODE

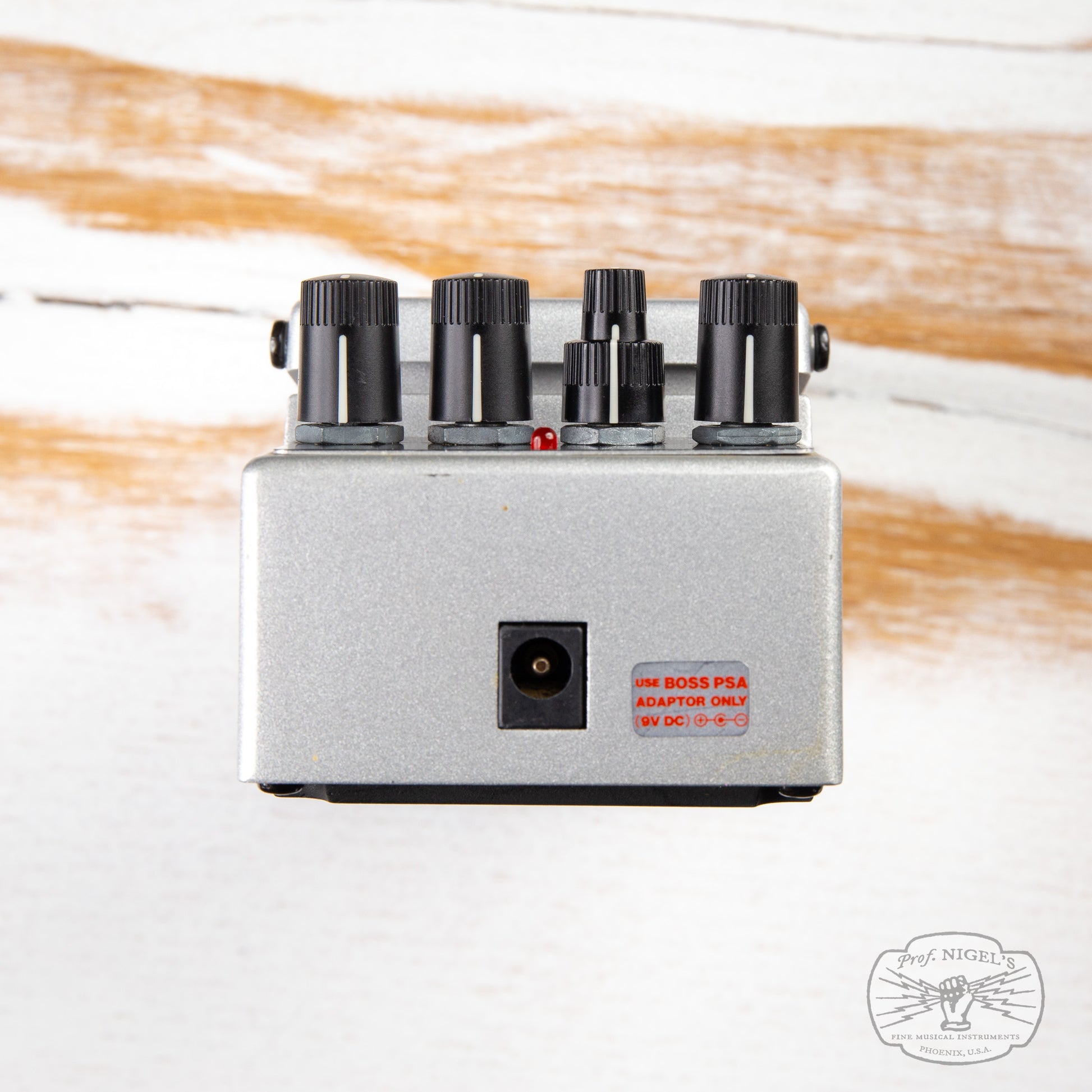

Connectors: INPUT Jack, OUTPUT Jack, AC Adaptor Jack (DC 9V)

Weight: 420g / 15oz (Including Battery)
