Boss GE-7 Equalizer MIJ Black Label 1987 Vintage Made in Japan

Boss GE-7 Equalizer – 1987 Black Label

Condition

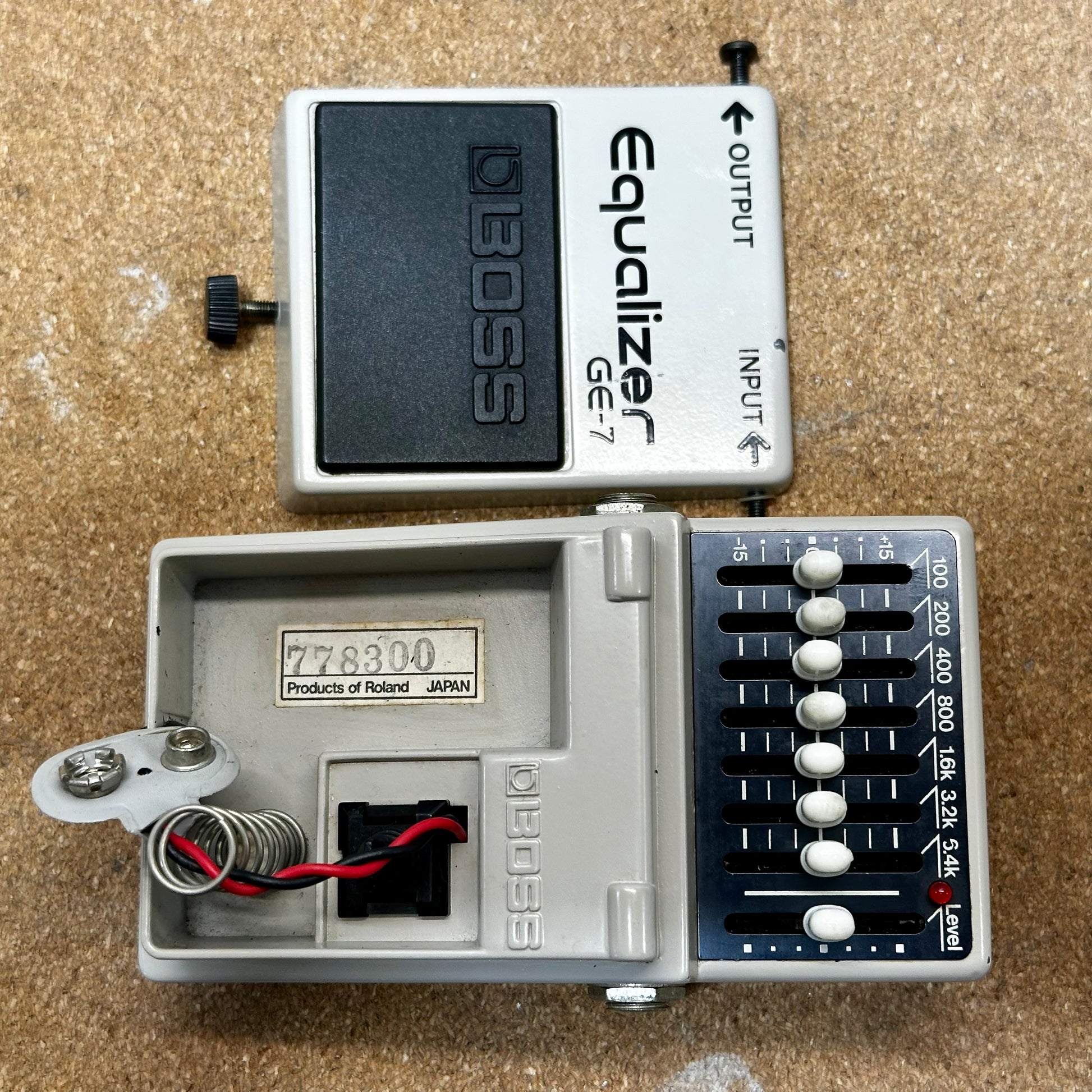

This effect pedal is in Excellent condition. There are a minor scattered chips and scuffs on the exterior. This unit has been thoroughly cleaned and tested with 9v battery and ACA compatible power supply. We replaced the original deteriorating rubber screw grommet. All functions are operational. Build date of April 1987. The original box and instructions are not included. This unit requires a BOSS ACA compatible power supply or a 9V battery. Unsure about powering Boss ACA 12v pedals? Send us a message.

Specifications

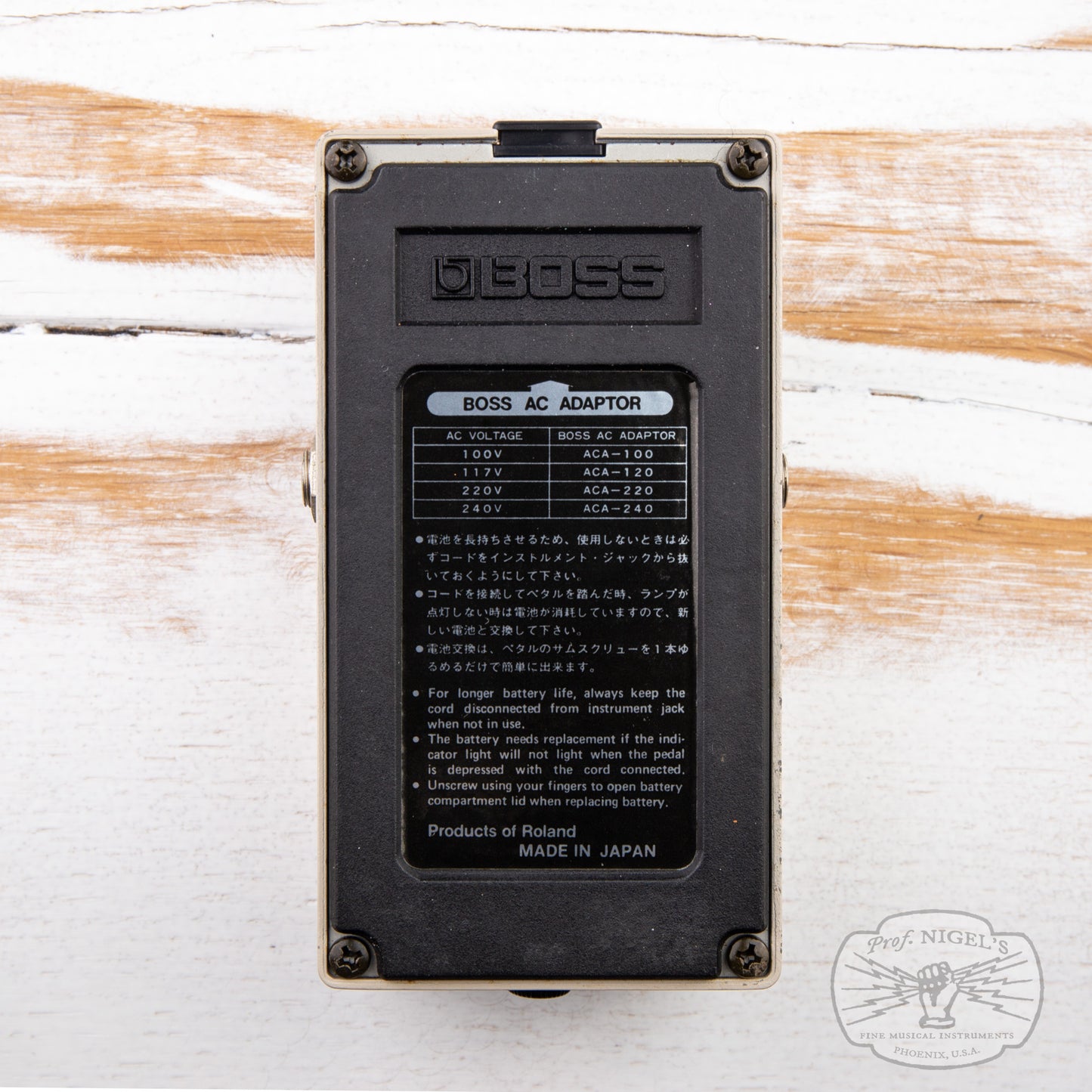

Power: Battery 9V (x 1) AC Adaptor: ACA-Series (ACA-120, Optional)

Current Draw: 7mA at 9V

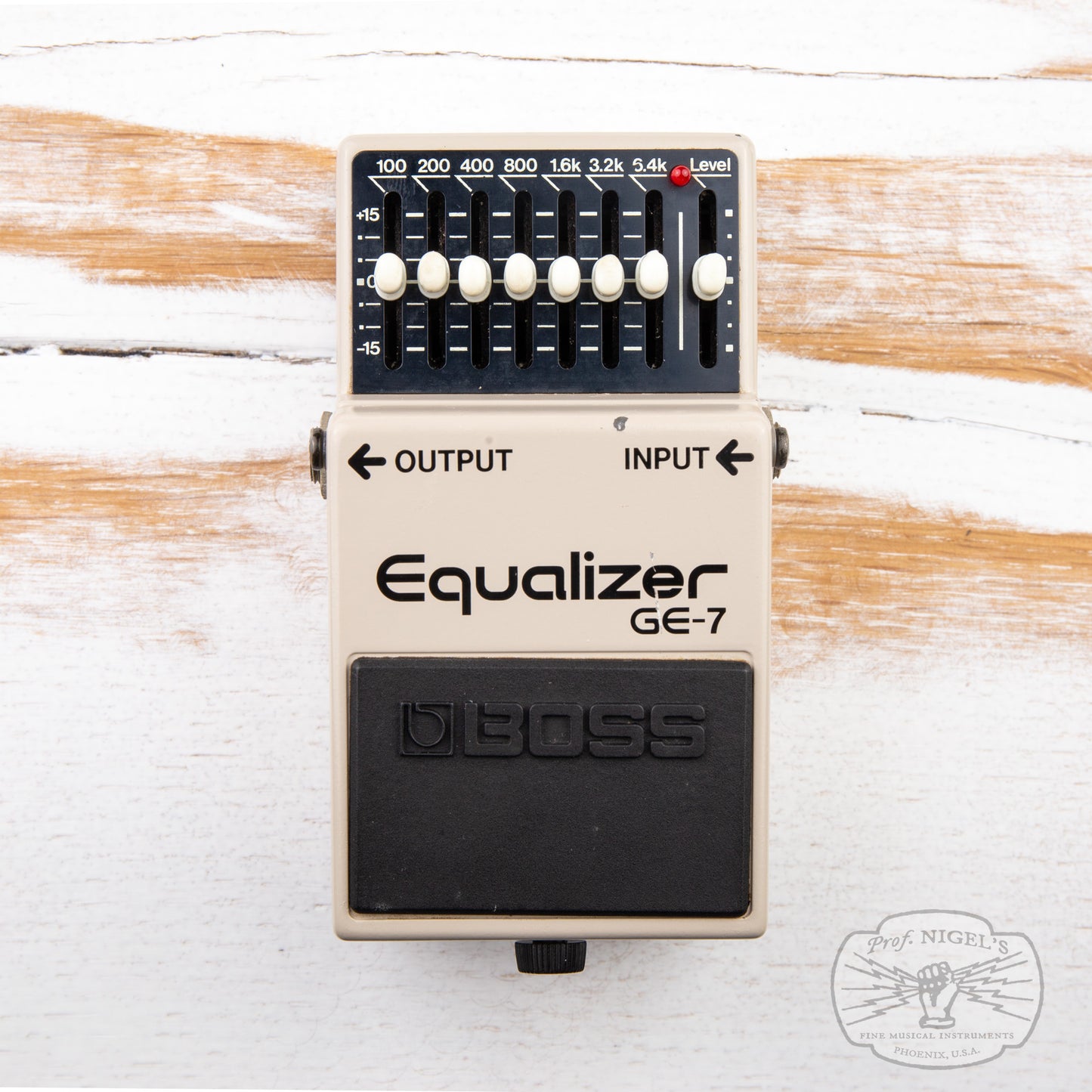

Equalization: 7-band +15 dB, 100Hz/200Hz/400Hz/800Hz/1.6kHz/3.2kHz/6.4kHz

Others: NORMAL/EFFECT Select Switch

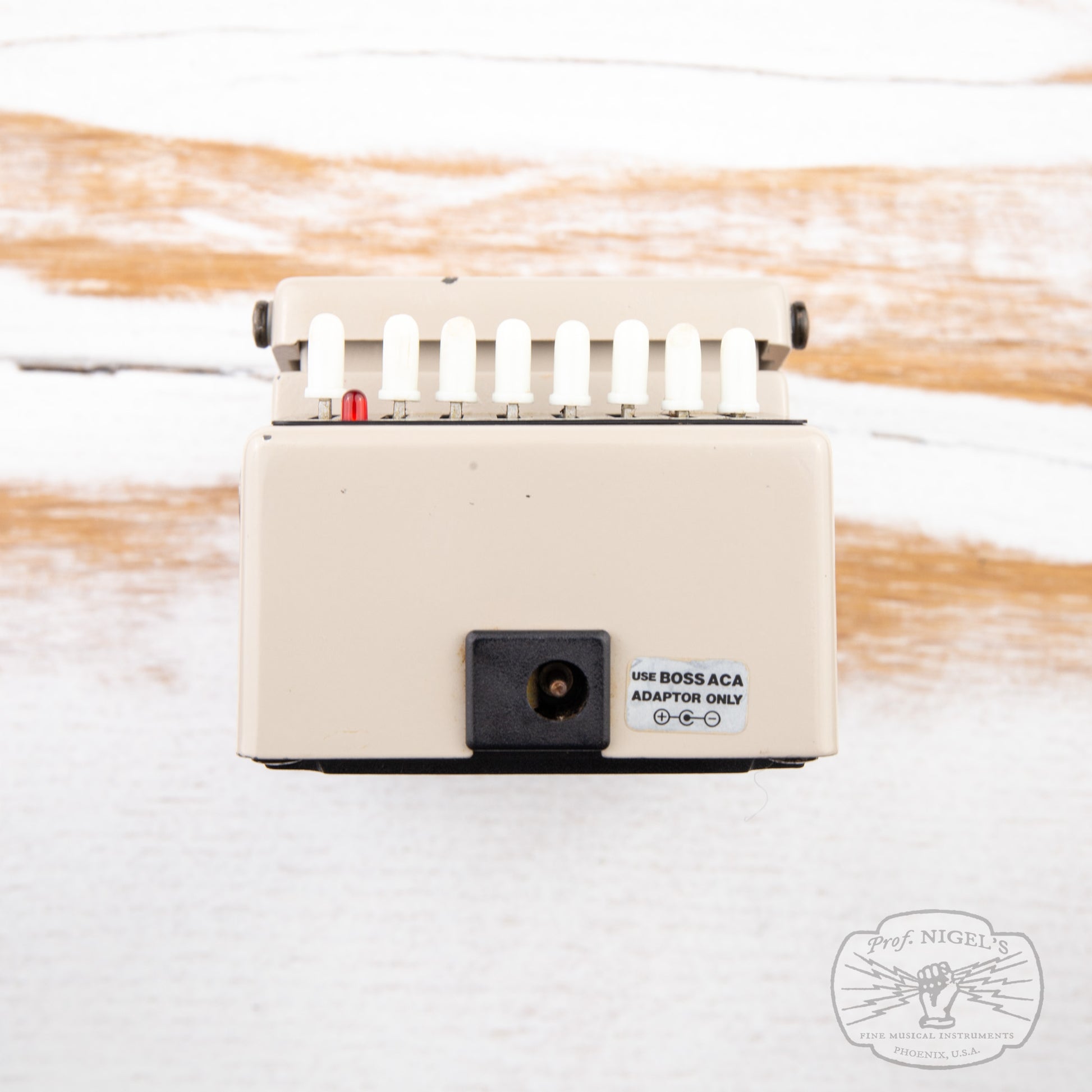

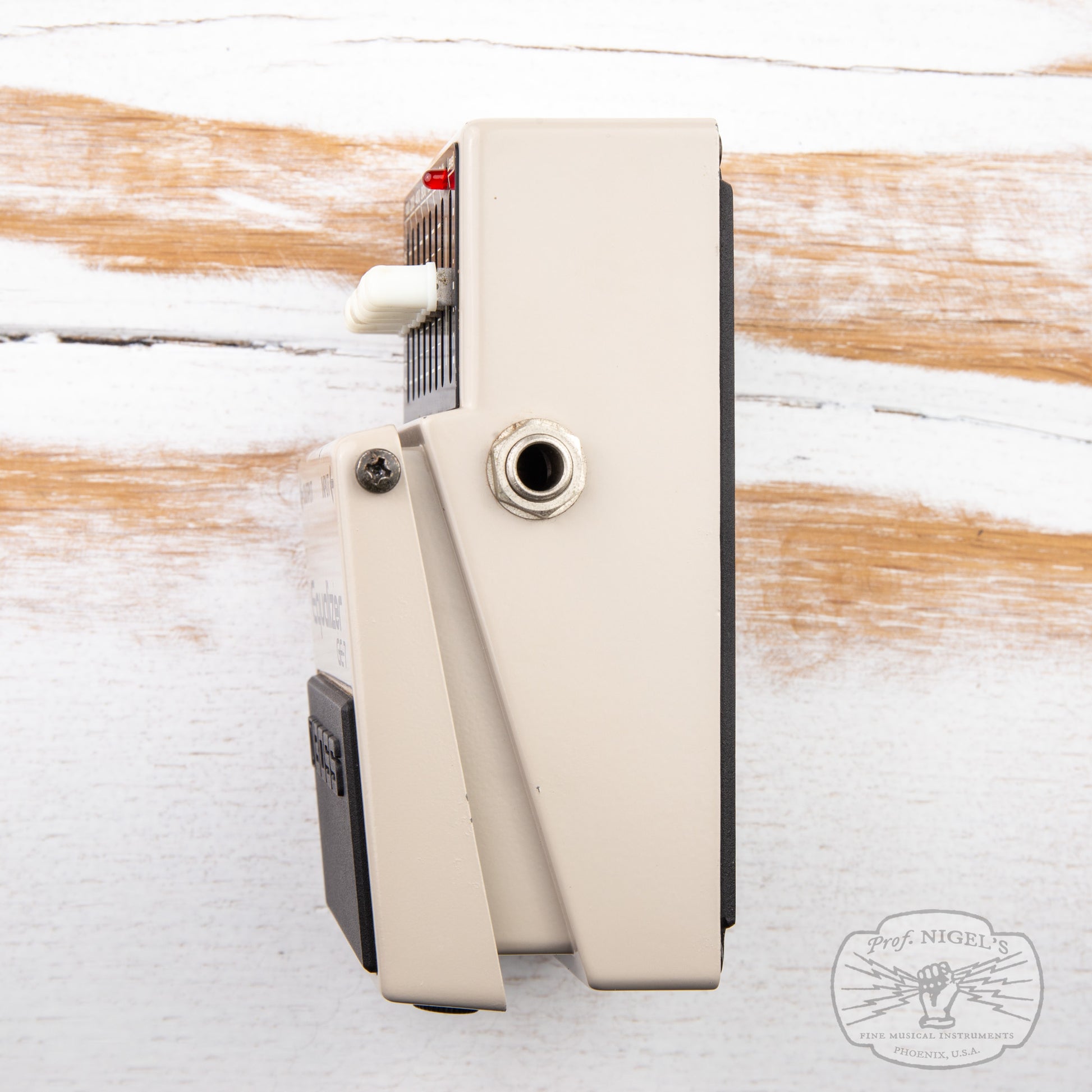

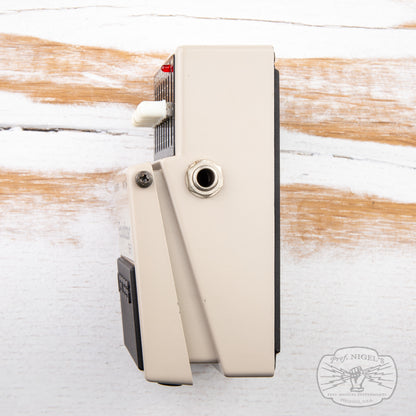

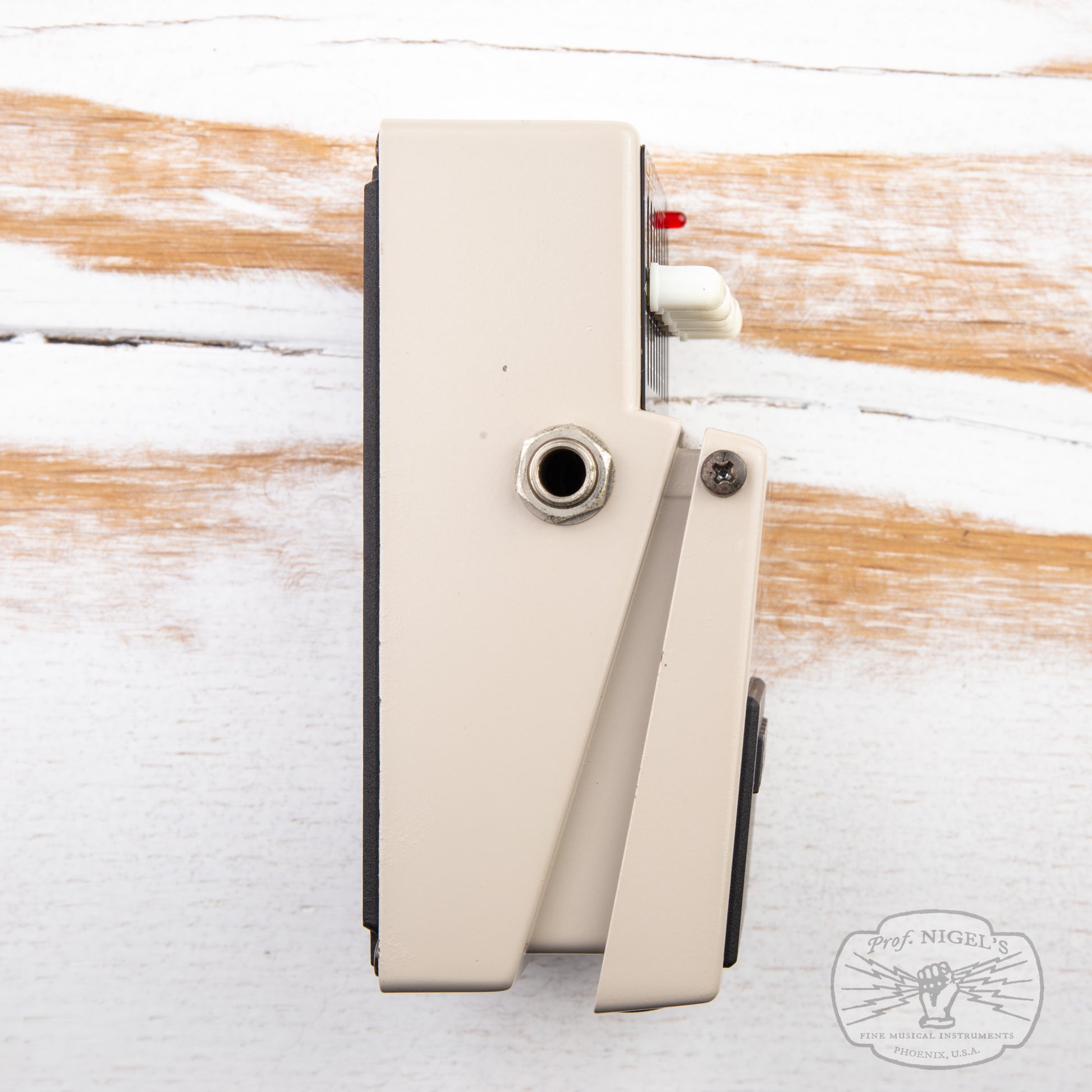

Jacks: INPUT, OUTPUT, AC adaptor

Residual Noise: -100dBm (IHF-A)

Minimum Operating Input Level: -60dBm at 250Hz

Dimensions: 70(W) x 55(H) x 125(D) mm, 2 3/4(W) x 2 3/16 (H) x 4-15/16(D) inches

Weight: 450g/15.9oz
