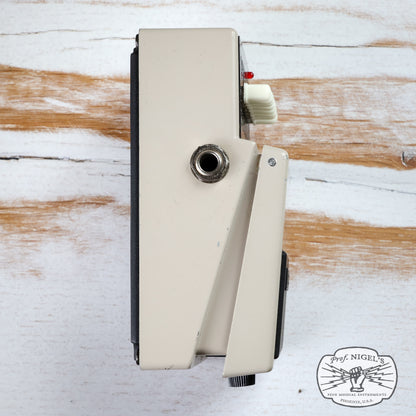

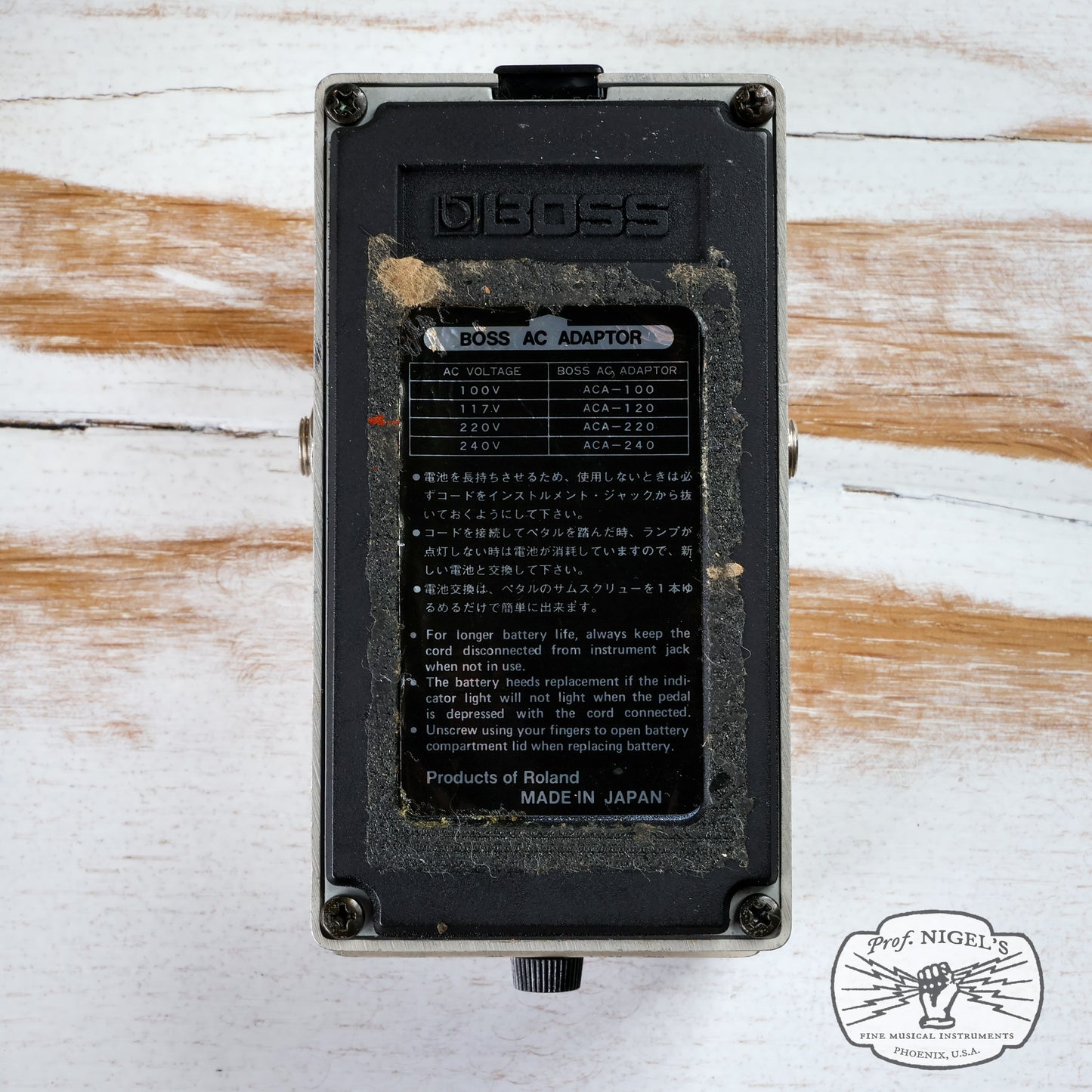

Boss GE-7 Equalizer MIJ Black Label Made in Japan

Boss GE-7 Equalizer – 1985 MIJ Black Label

Condition

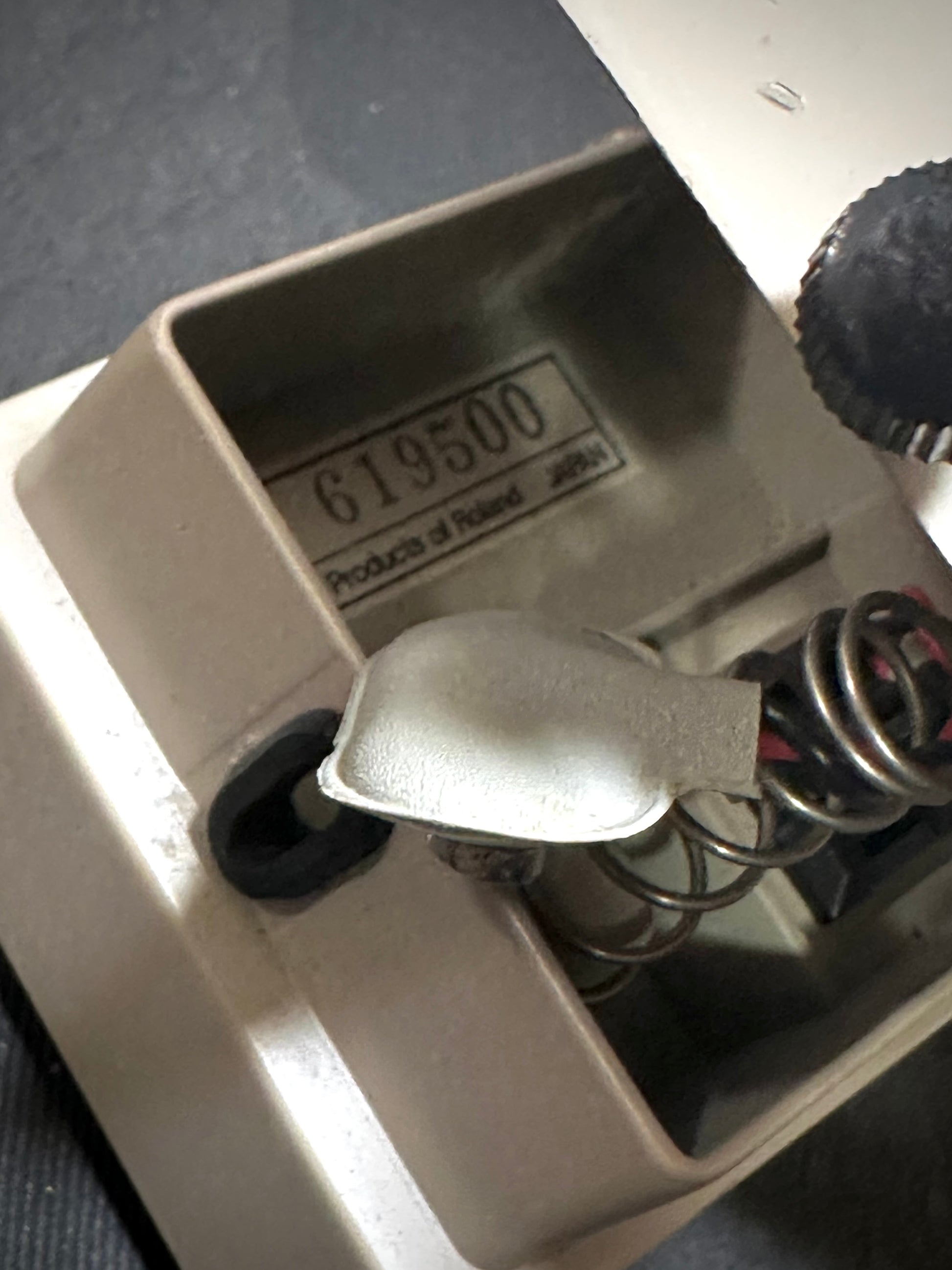

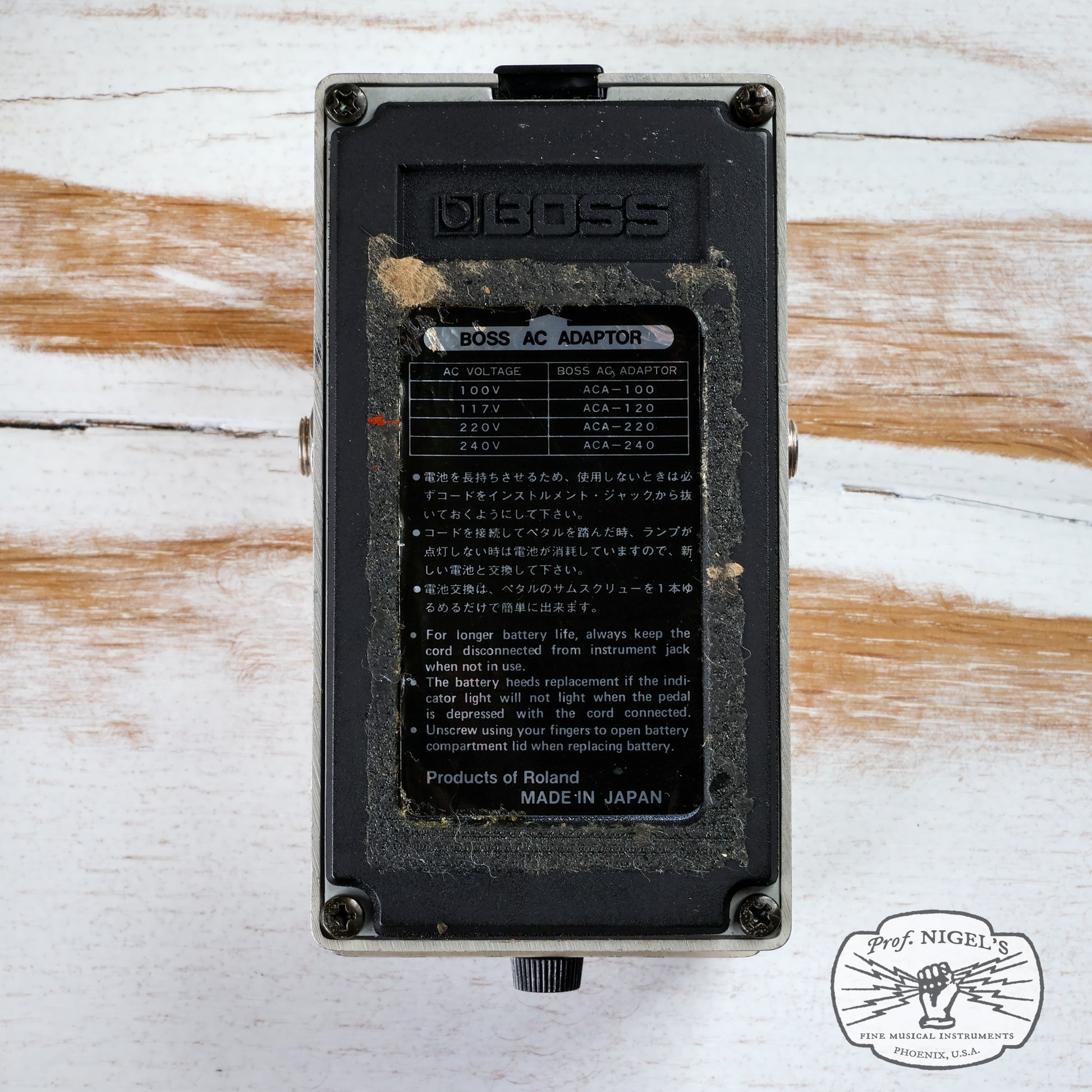

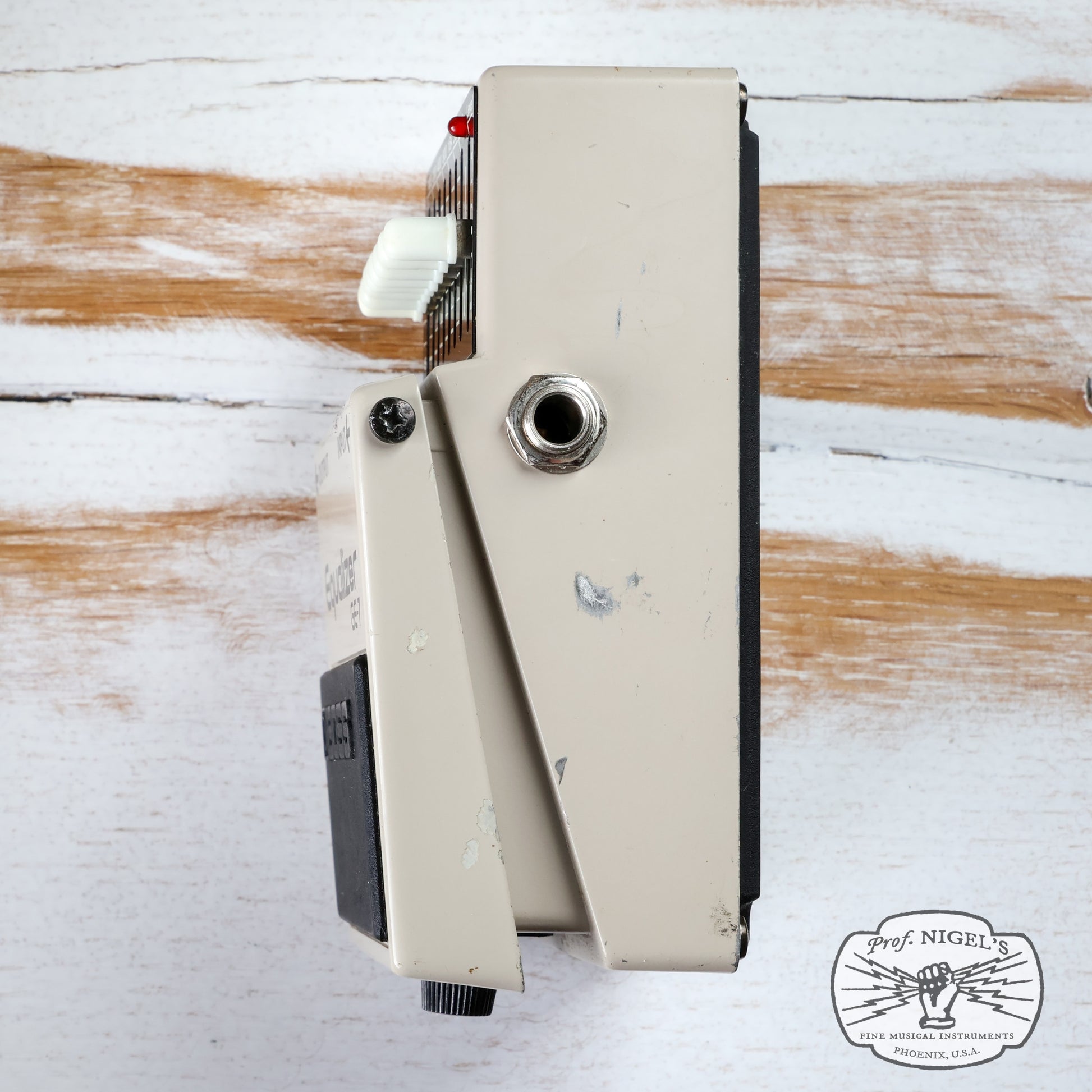

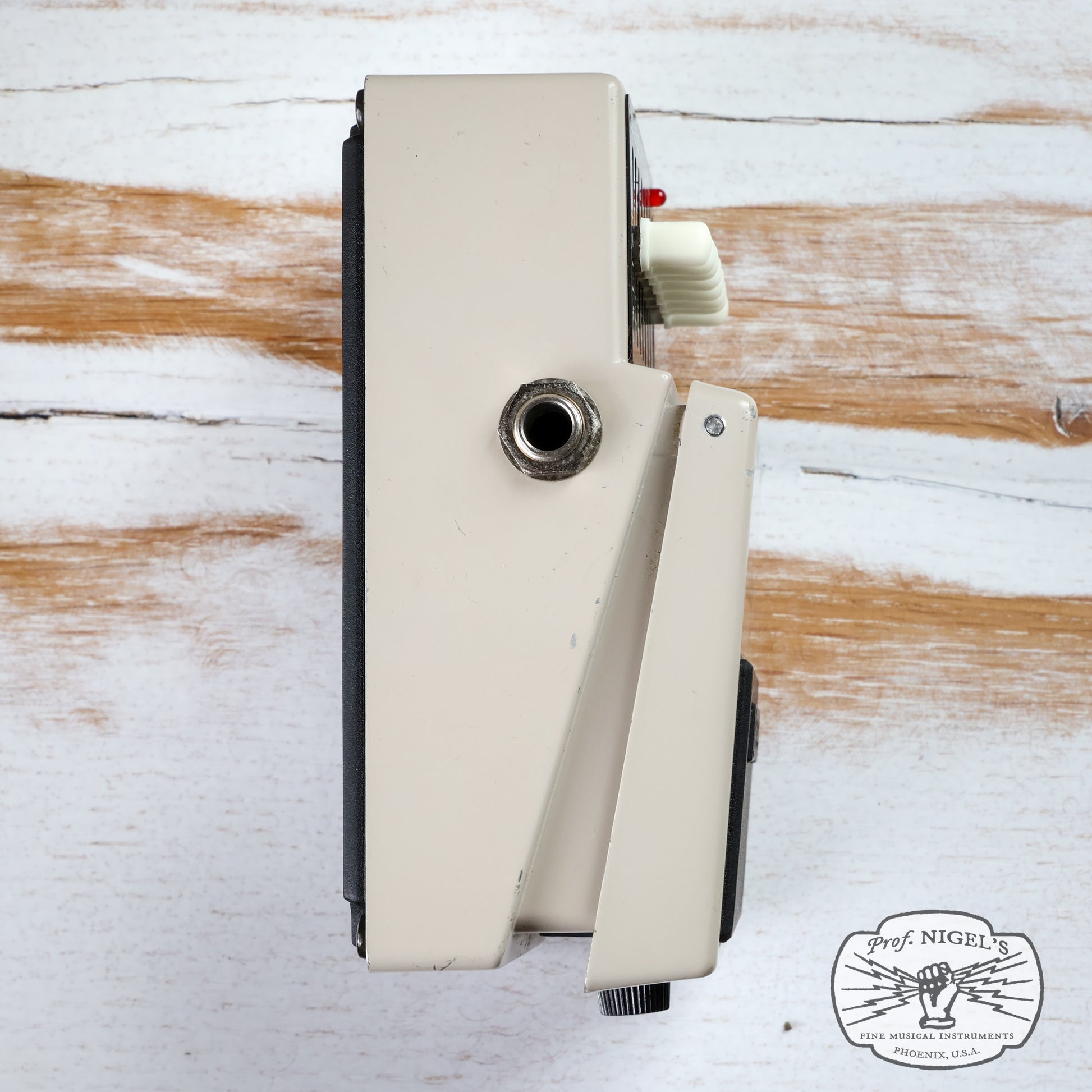

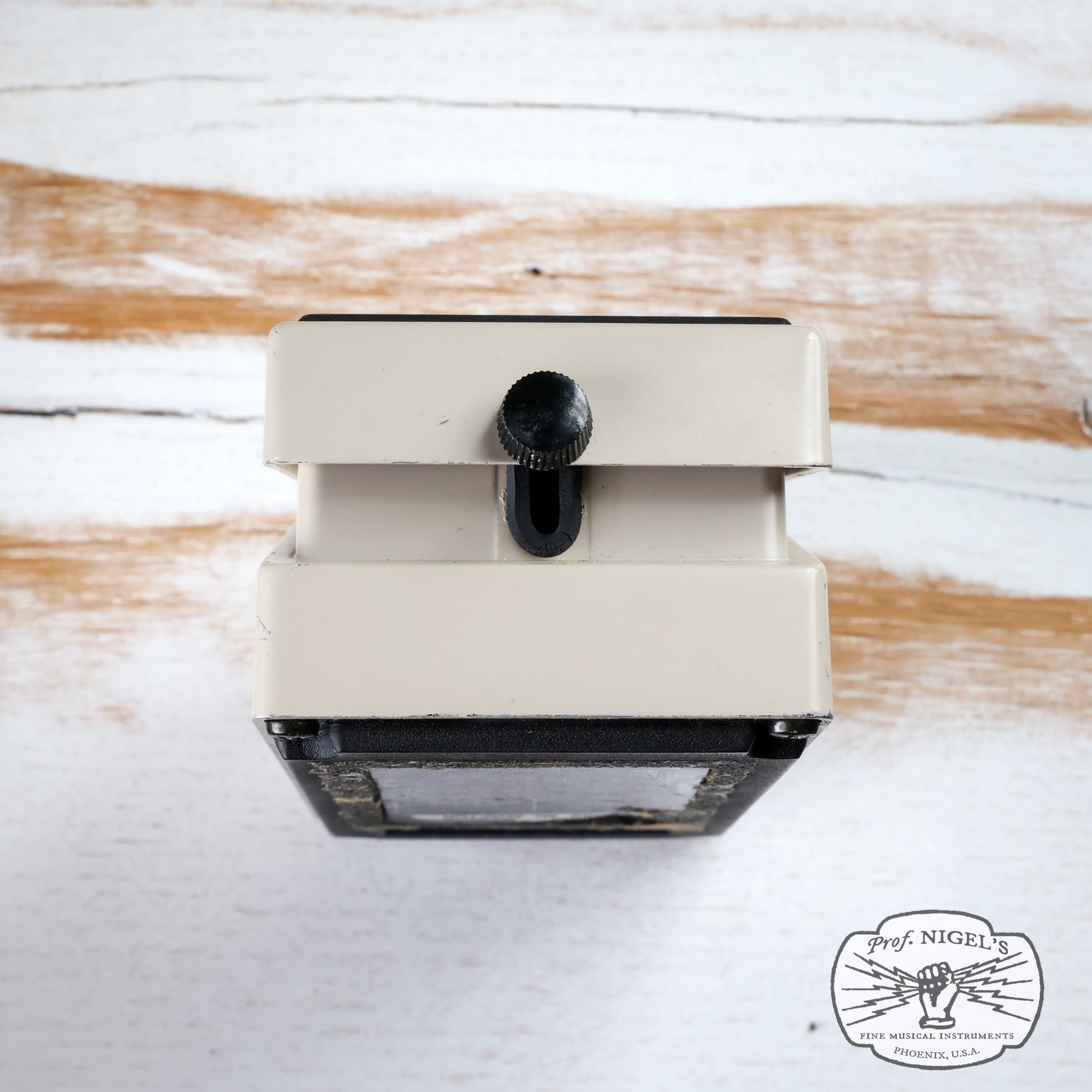

This effect pedal is in Very Good condition with a build date of December 1985. There are scattered chips, marks and signs of age on the exterior. One of the pedal/battery cover hinge screws is broken at the head. This unit has been thoroughly cleaned and tested with 9v battery and ACA compatible power supply. All functions are operational. The original packaging is not included. This unit requires a BOSS ACA compatible power supply or a 9V battery. Unsure about powering Boss ACA (12v) pedals? Send us a message.

Specifications

Power: Battery 9V (x 1) AC Adaptor: ACA-Series (ACA-120, Optional)

Current Draw: 7mA at 9V

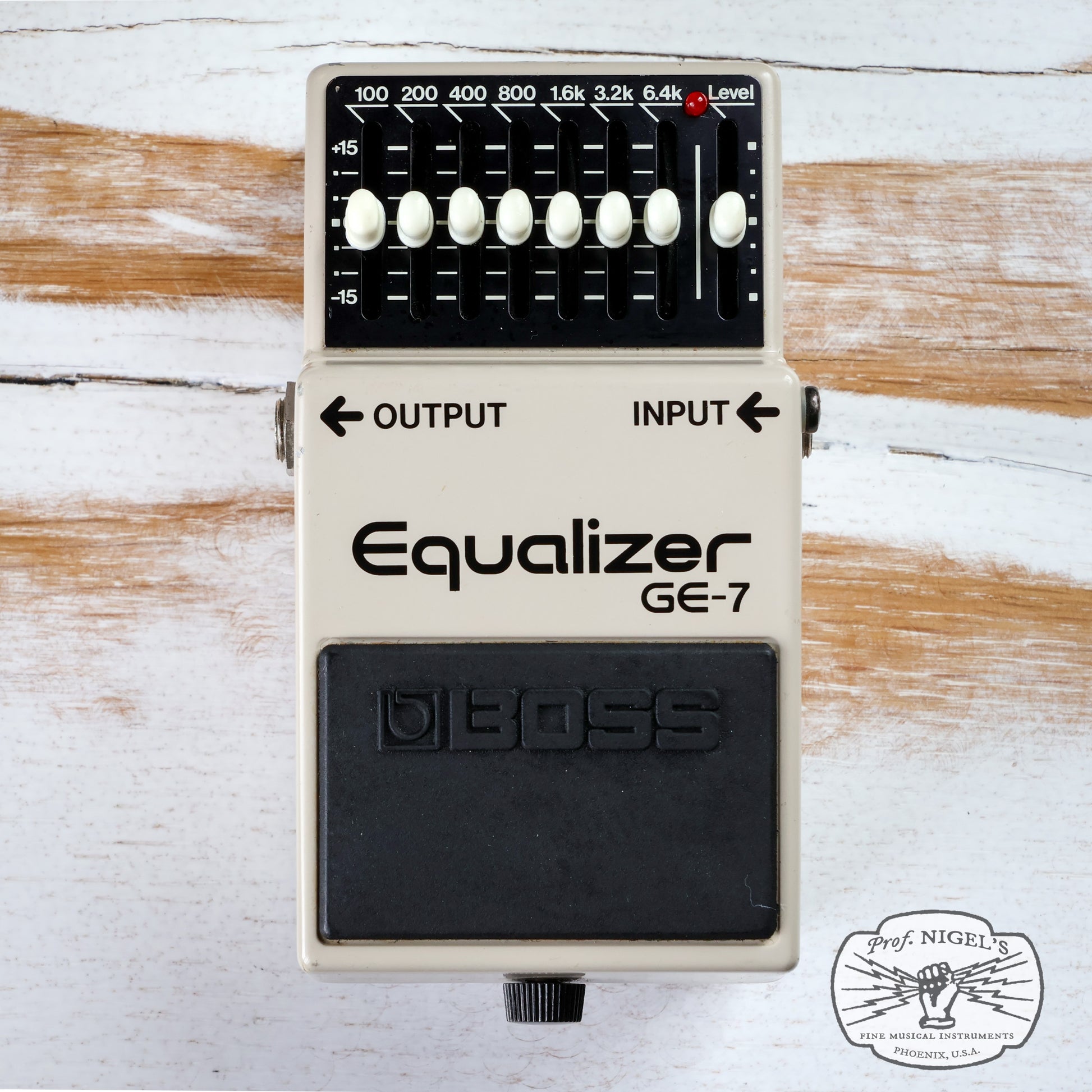

Equalization: 7-band +15 dB, 100Hz/200Hz/400Hz/800Hz/1.6kHz/3.2kHz/6.4kHz

Others: NORMAL/EFFECT Select Switch

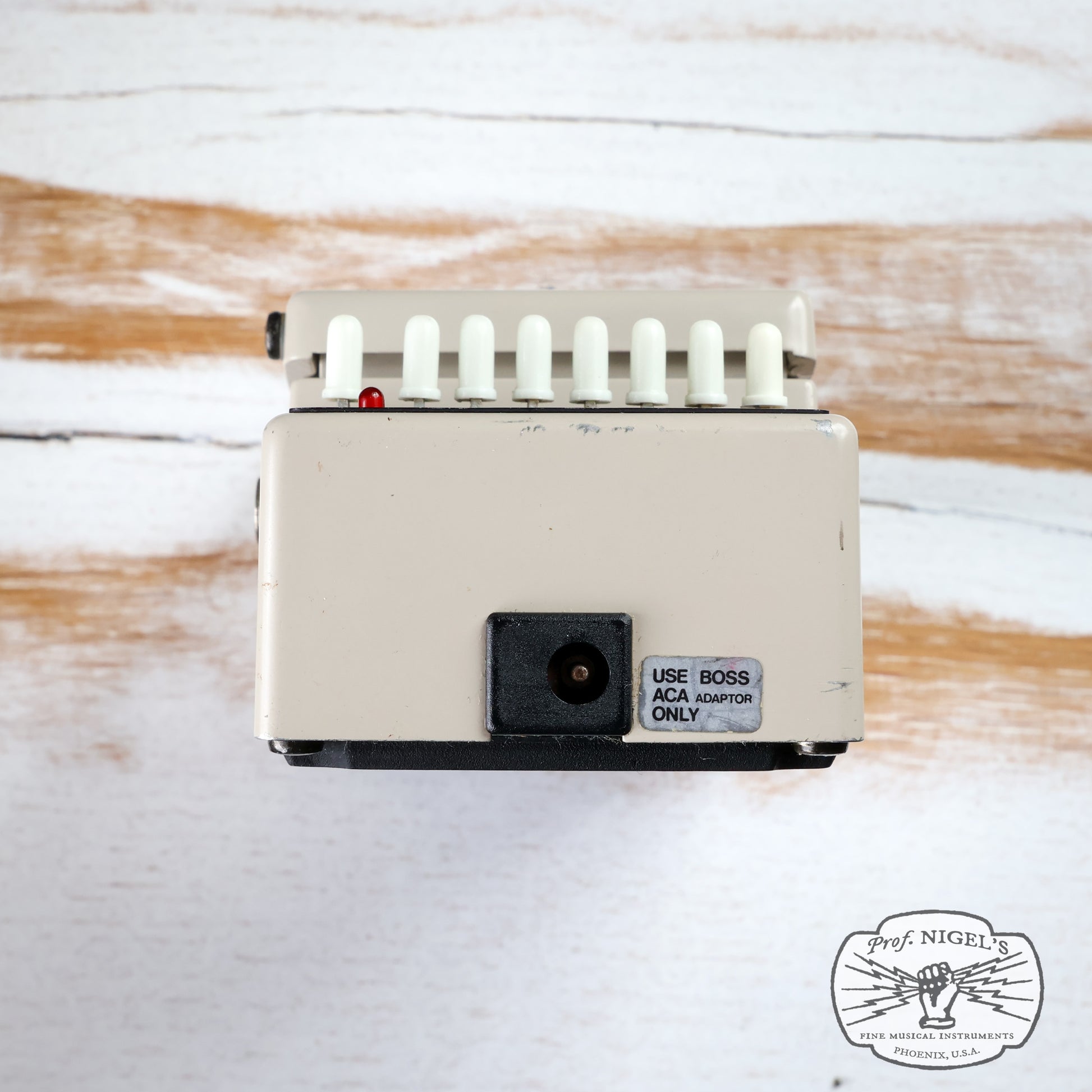

Jacks: INPUT, OUTPUT, AC adaptor

Residual Noise: -100dBm (IHF-A)

Minimum Operating Input Level: -60dBm at 250Hz

Dimensions: 70(W) x 55(H) x 125(D) mm, 2 3/4(W) x 2 3/16 (H) x 4-15/16(D) inches

Weight: 450g/15.9oz
