Boss MIJ OC-2 Octave w/ Box Black Label 1987 Vintage Made in Japan

Boss MIJ OC-2 Octave – 1987 Black Label

Condition

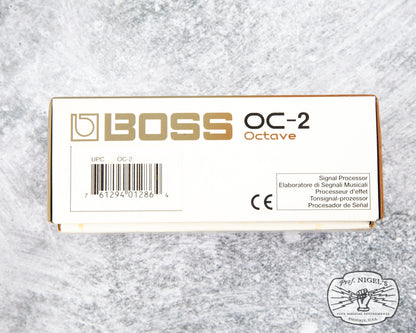

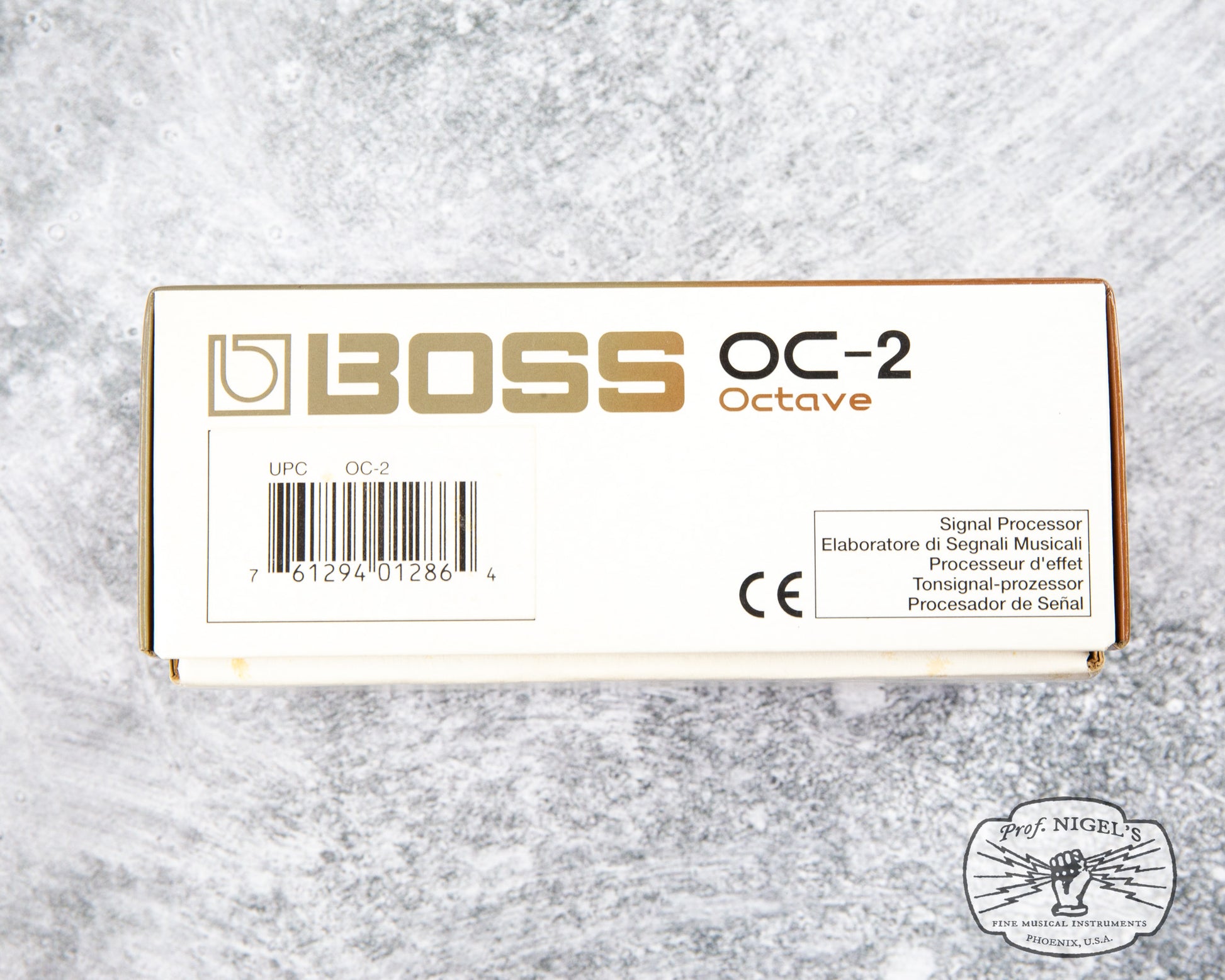

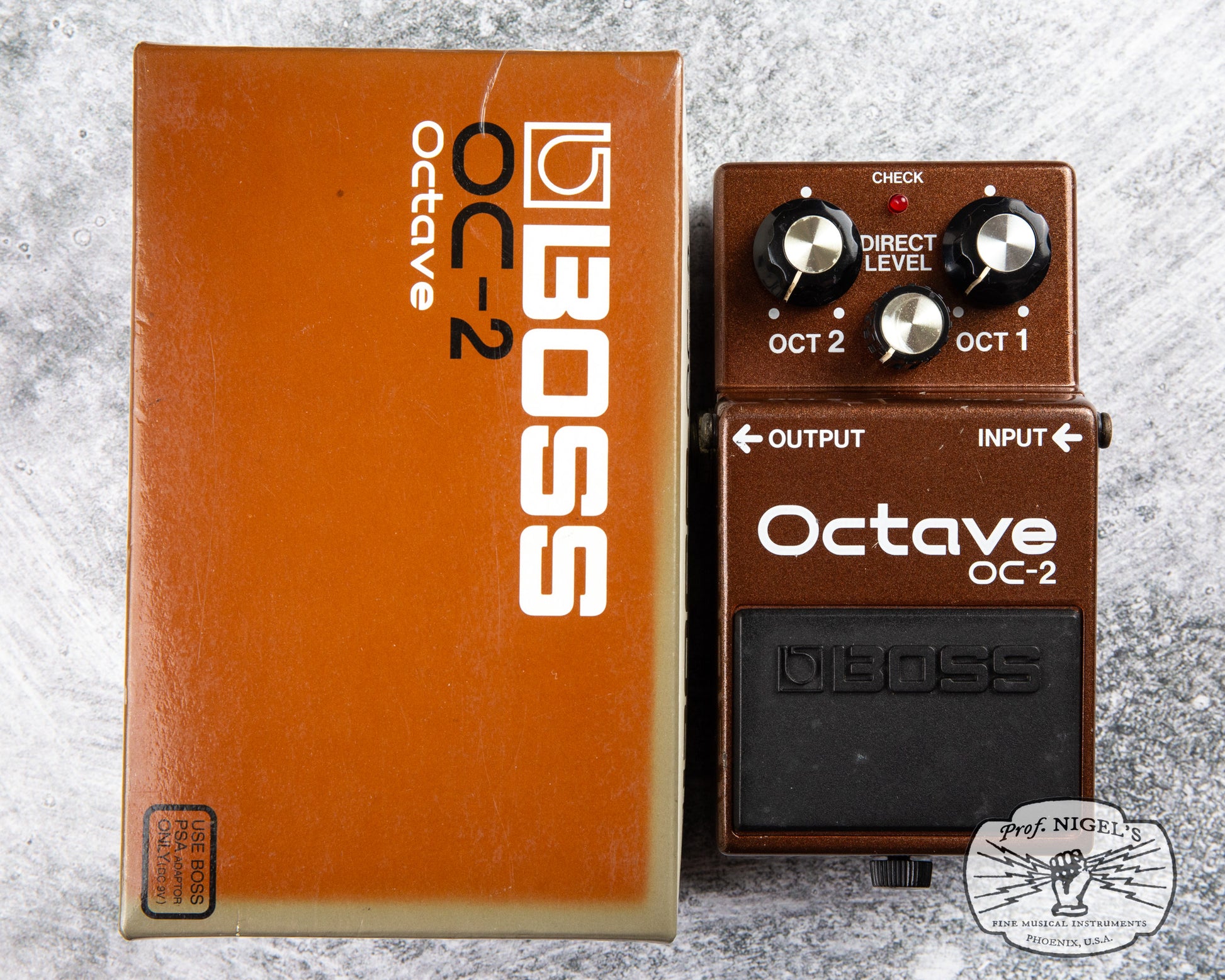

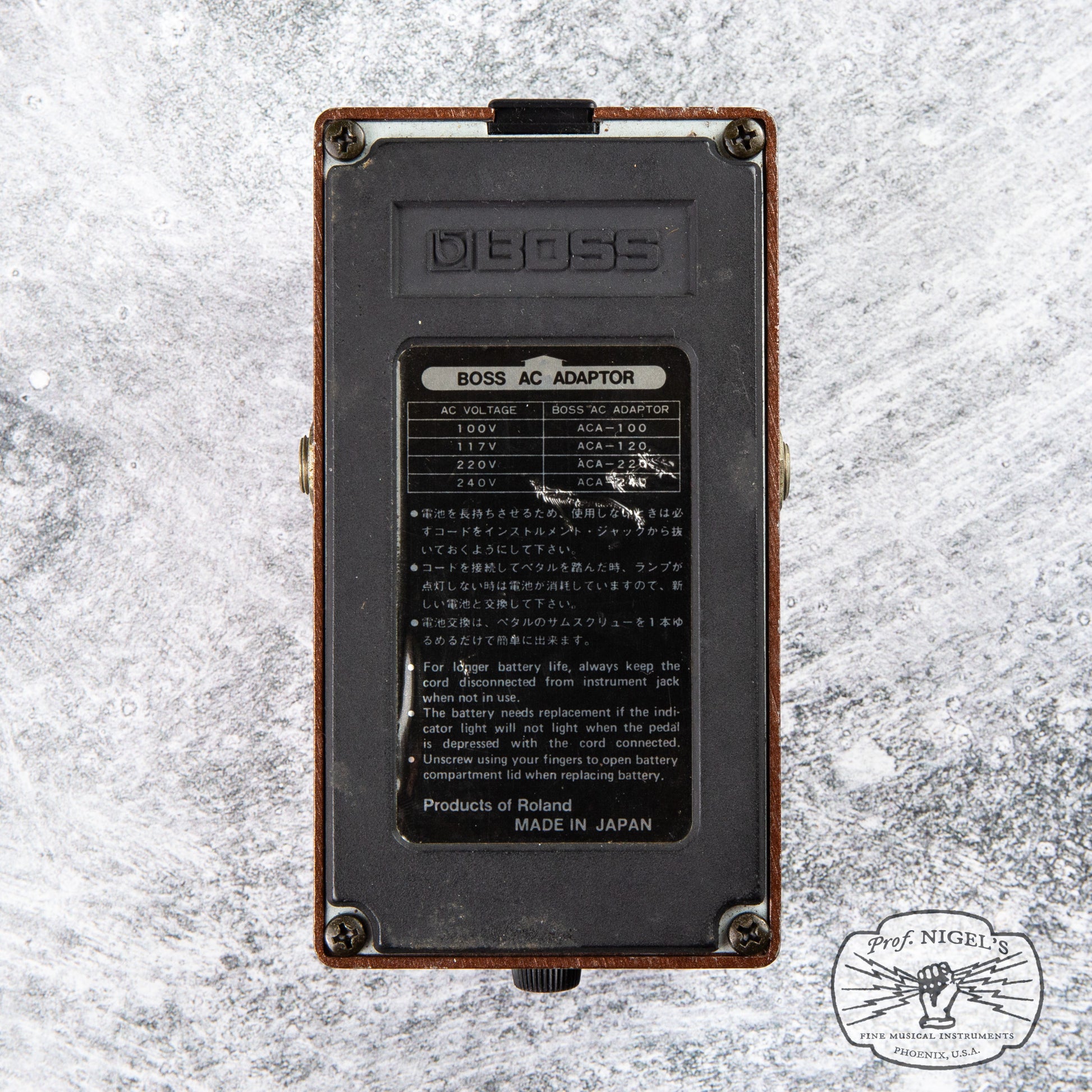

This effects pedal is in Excellent condition. There are minor paint chips, scuffs and scratches on the exterior. This unit has been thoroughly cleaned and tested with 9v battery and compatible power supply. All functions are operational. Build date of June 1987. The original box is included. This unit requires a BOSS ACA power supply or a 9V battery. Have questions about powering Boss ACA 12v pedals? Message us!

Specifications

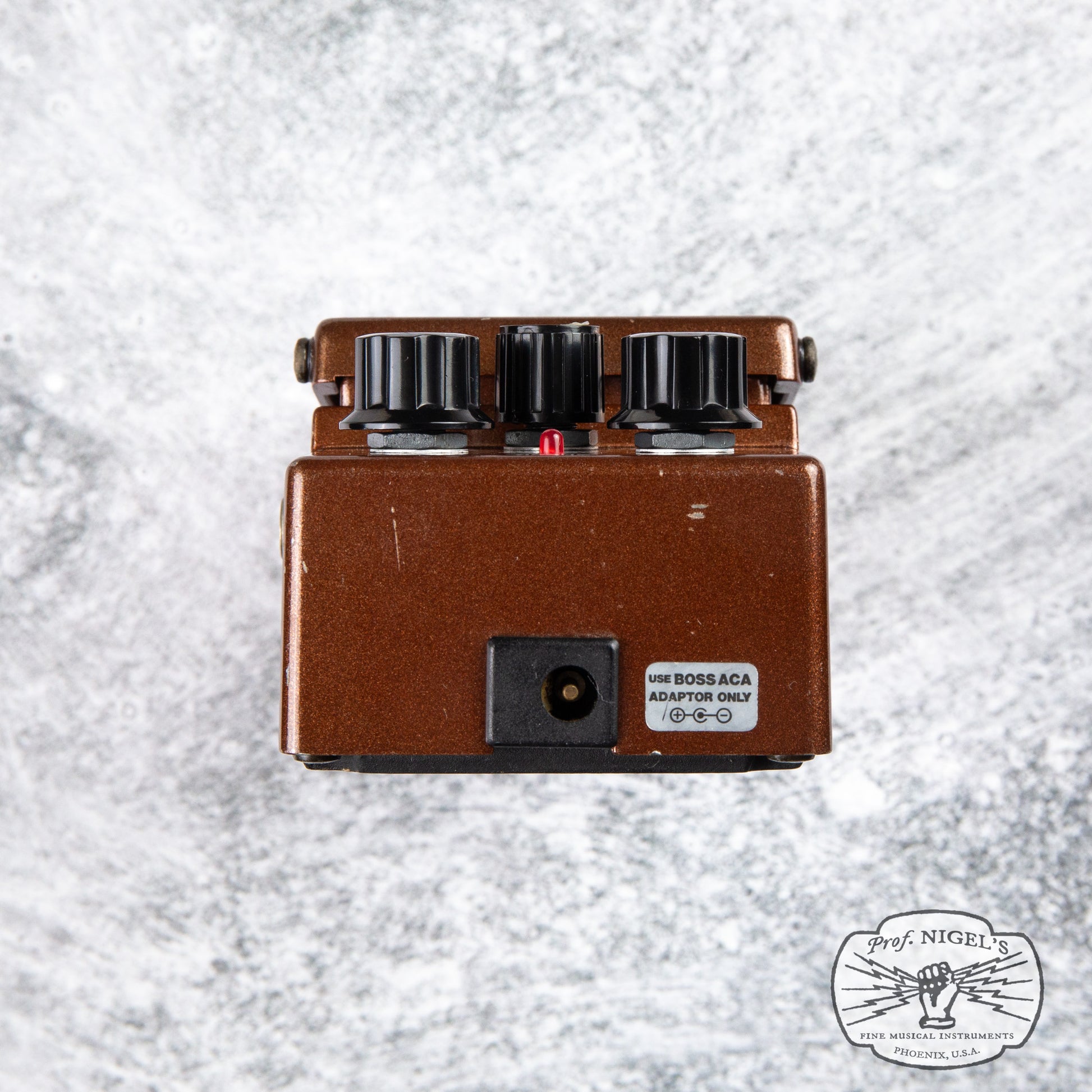

Power: Battery 9V (x 1) AC Adaptor: ACA-Series (ACA-120, Optional)

Consumption Current Draw: 4mA at 9V

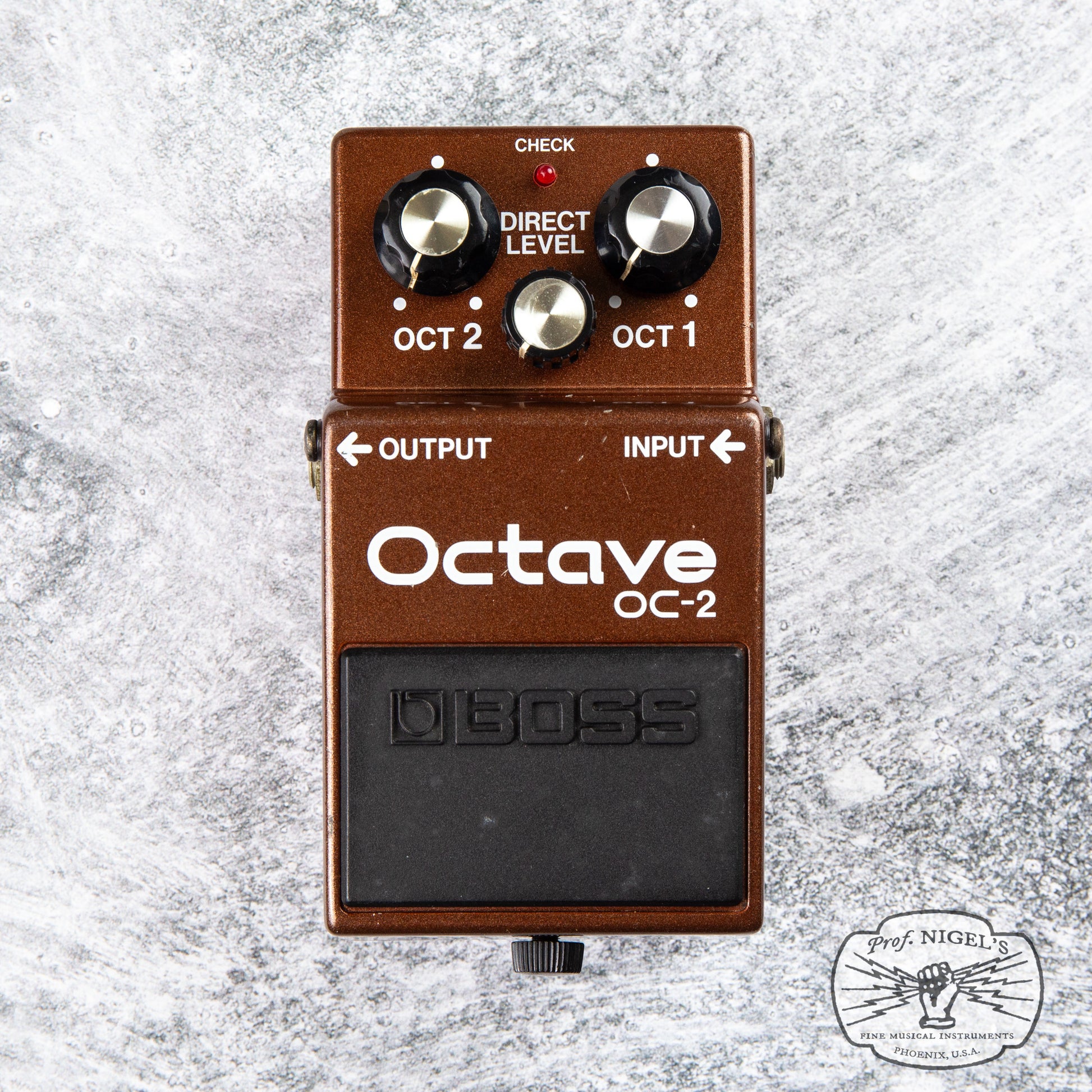

Controls: DIRECT LEVEL, OCTAVE 1, OCTAVE 2

Others: NORMAL/EFFECT Select Switch (FET Electric Switching System)

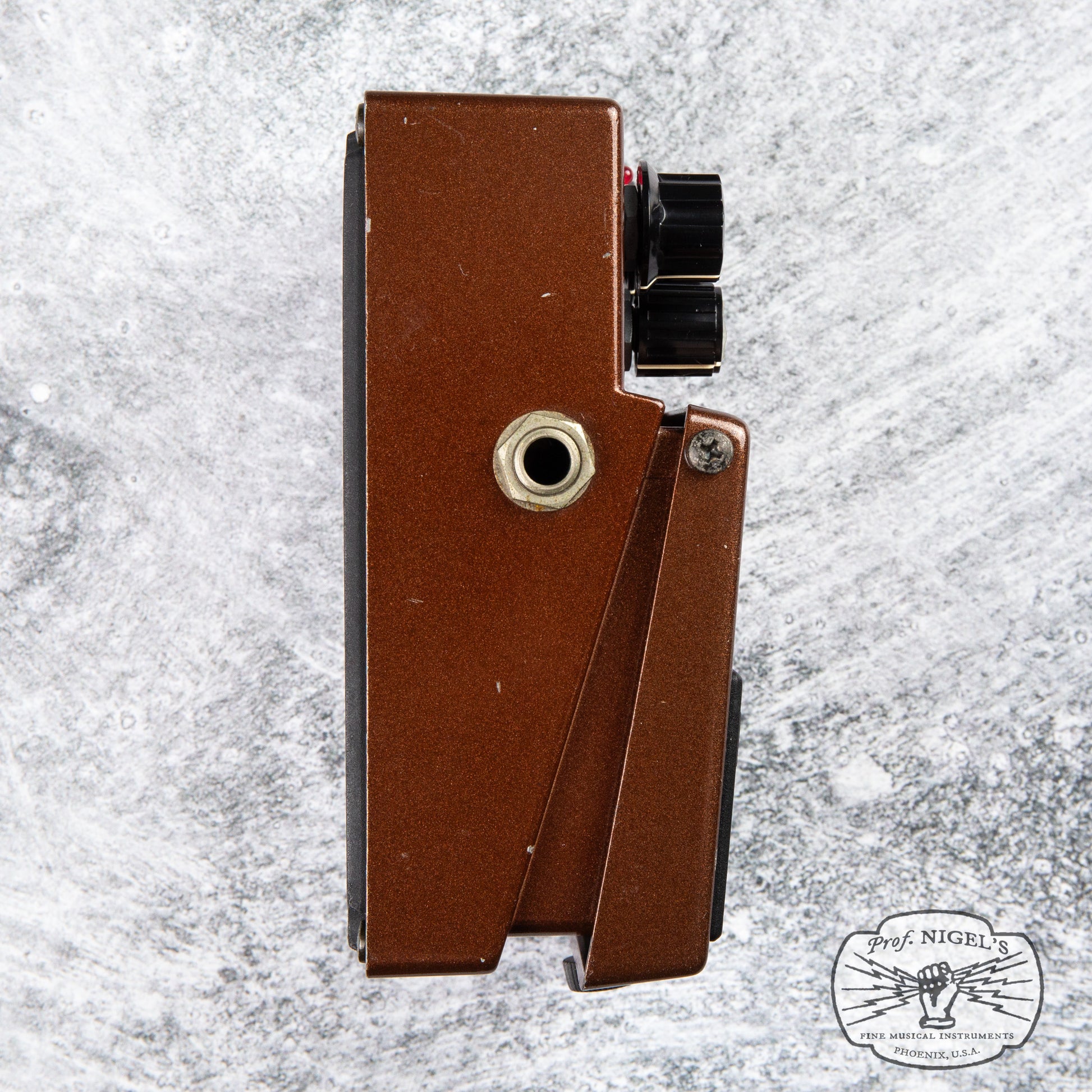

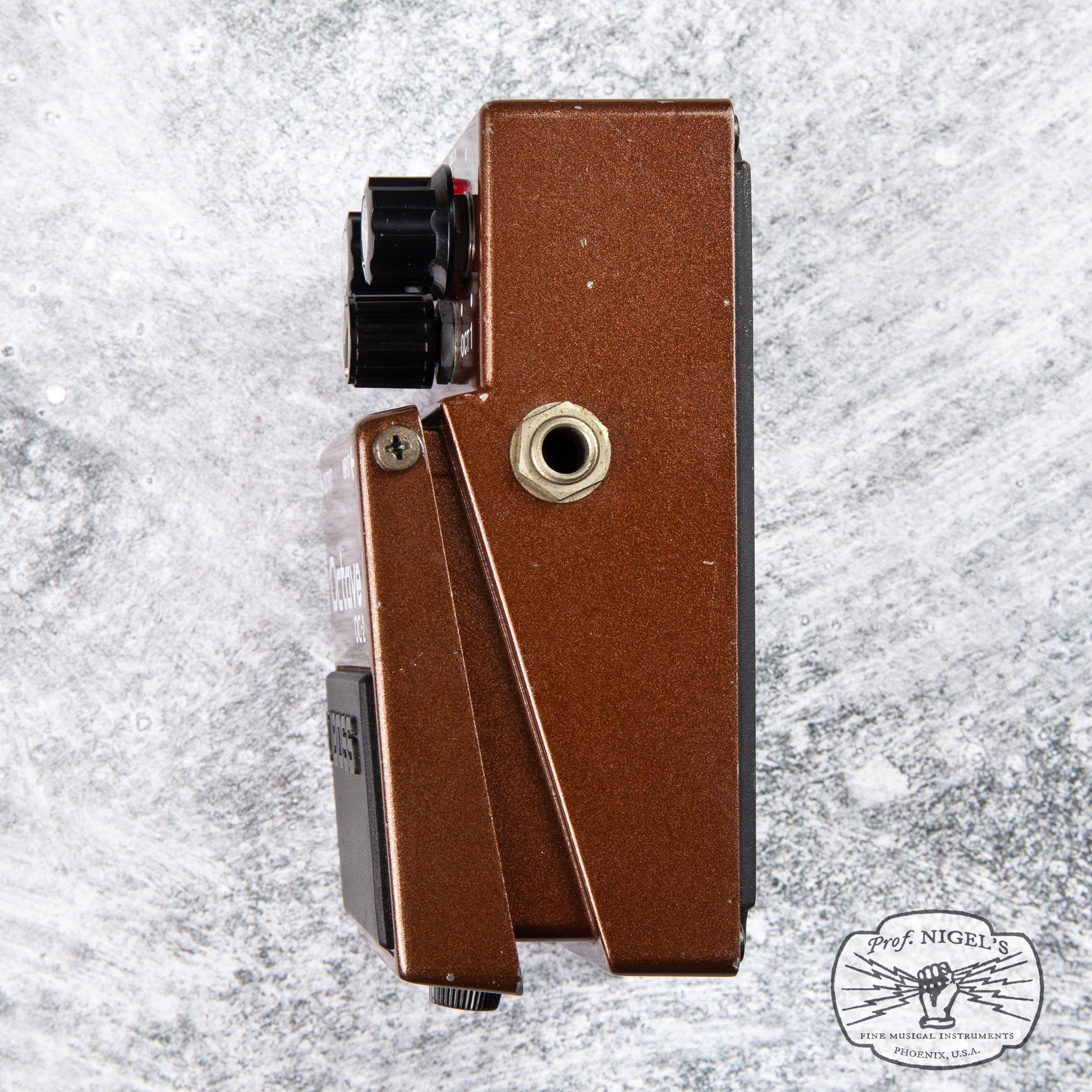

Jacks: INPUT, OUTPUT

Residual Noise: -100dBm (IHF-A)

Maximum Input Level: -5dBm

Maximum Output Level: 0dBm

Input Impedance: 1M Ohm (FET Input)

Output Load Impedance: 10k Ohms or more

Minimum Operating Input Level: -60dBm at 250Hz

Dimensions: 70(W) x 55(H) x 125(D) mm, 2 3/4(W) x 2 3/16 (H) x 4-15/16(D) inches

Weight: 400g/14oz
