Boss PH-2 Super Phaser 1984 Black Label Vintage MIJ

Boss PH-2 Super Phaser – 1984 Black Label

Professor's Notes

A truly excellent and flexible analog phaser that often flies under the radar. Great at getting a track to pop with subtle settings, or set it heavy for some wild and swirly phasing action.

Condition

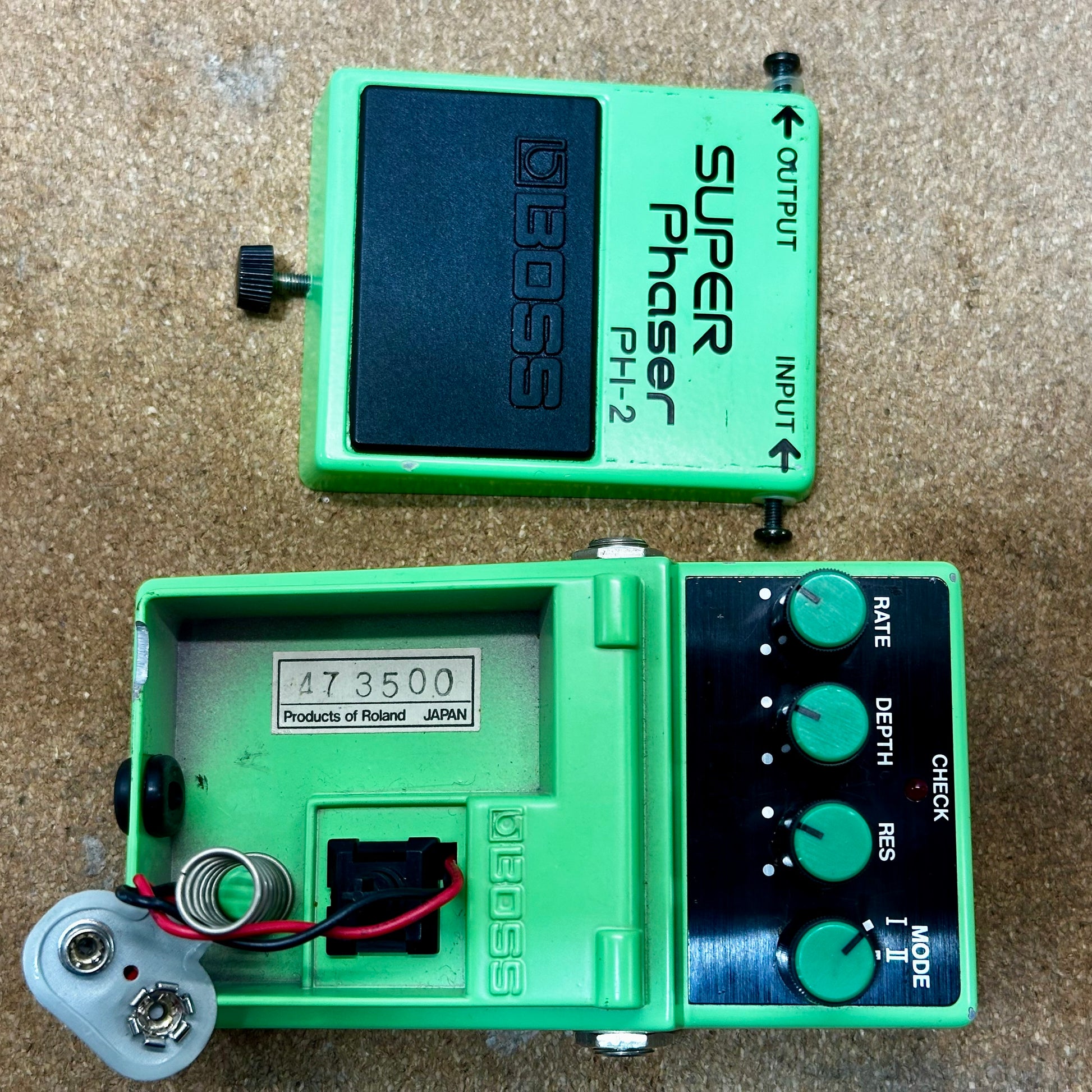

This effect pedal is in Excellent condition, with minor signs of use considering its age. There are scattered small chips and scuffs on the exterior. This does not impact sound or functionality. We replaced the original deteriorating rubber screw gasket with a brand new one and thoroughly cleaned the unit. It has also been tested with a 9v battery and compatible power supply. All functions are operational. Build date of October 1984. The original packaging and instructions are not included. This unit requires a BOSS ACA power supply or a 9V battery. Have questions about powering Boss ACA 12v pedals? Message us!

Specifications

Power: Battery 9V (x 1) AC Adaptor: ACA-Series (ACA-120, Optional)

Current Draw: 20 mA max at 9V

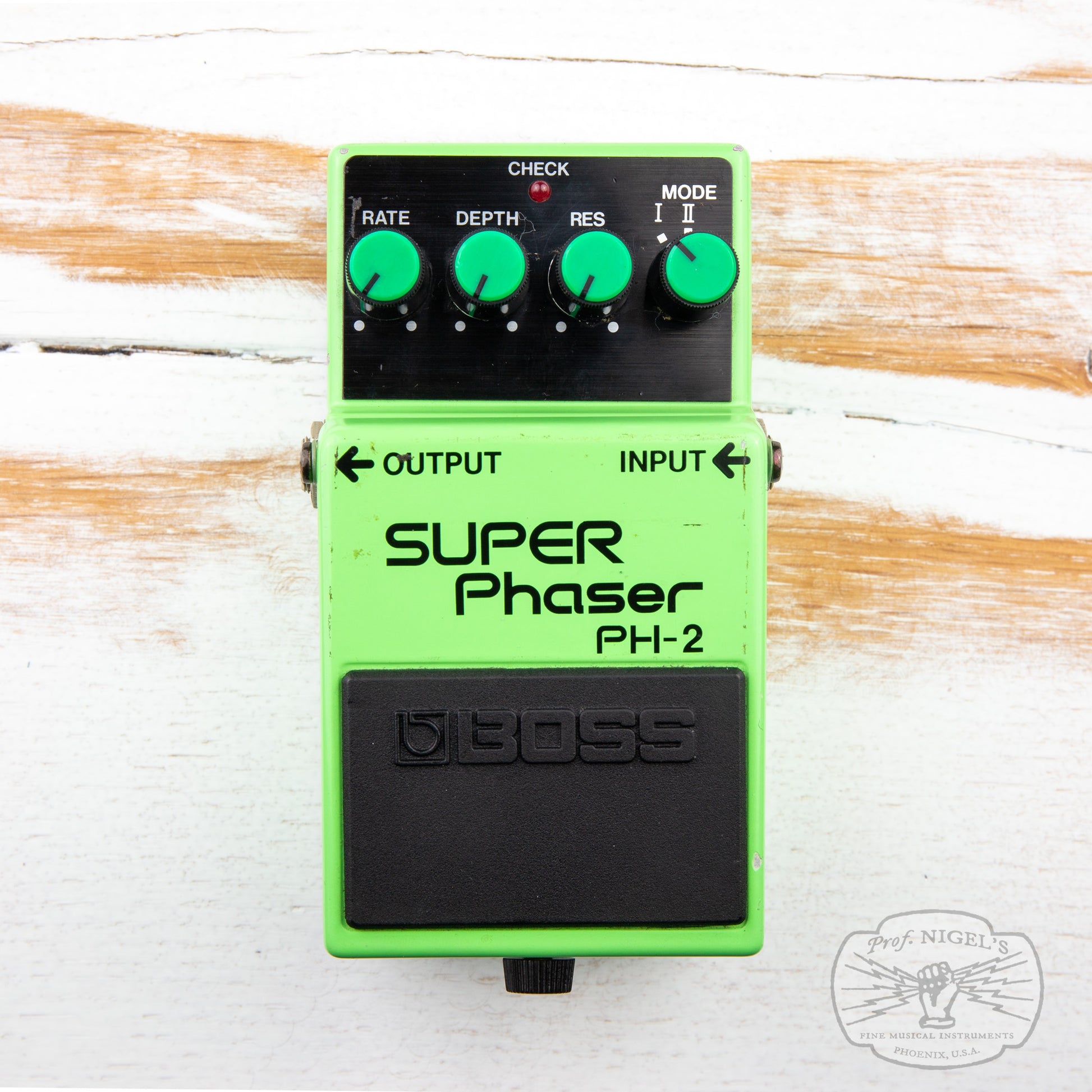

Controls: RATE, DEPTH, RESONANCE, MODE

Others: Pedal Effect Switch (FET Electronic Switch

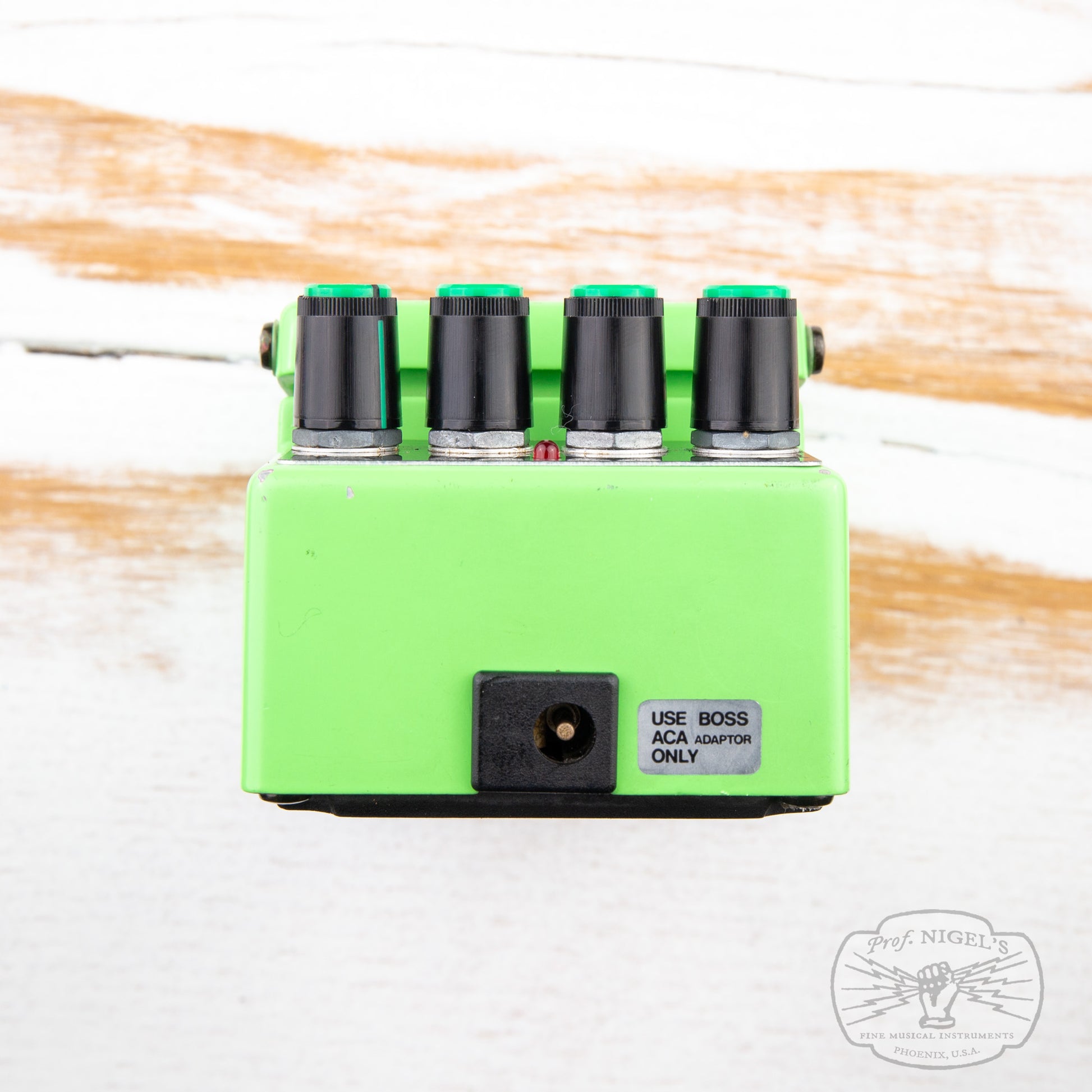

Jacks: INPUT, OUTPUT, AC adaptor

Phase shift: 12 steps, 2160 degrees

LFO Speed: 14 sec - 100m sec

Residual Noise: Less than -80dBm (IHF-A)

Maximum Input Level: -5dBm

Gain: Unity

Input Impedance: 1M Ohm

Output Load Impedance: More than 10K Ohms

Minimum Operating Input Level: -60dBm at 250Hz

Dimensions: 70(W) x 55(H) x 125(D) mm, 2 3/4(W) x 2 3/16 (H) x 4-15/16(D) inches

Weight: 400g/14oz
