Boss PH-2 Super Phaser Black Label MIJ

🚚 FAST SHIPPING from Phoenix, AZ! Professionally tested, packed with care.

Boss PH-2 Super Phaser – 1984 Black Label

Condition

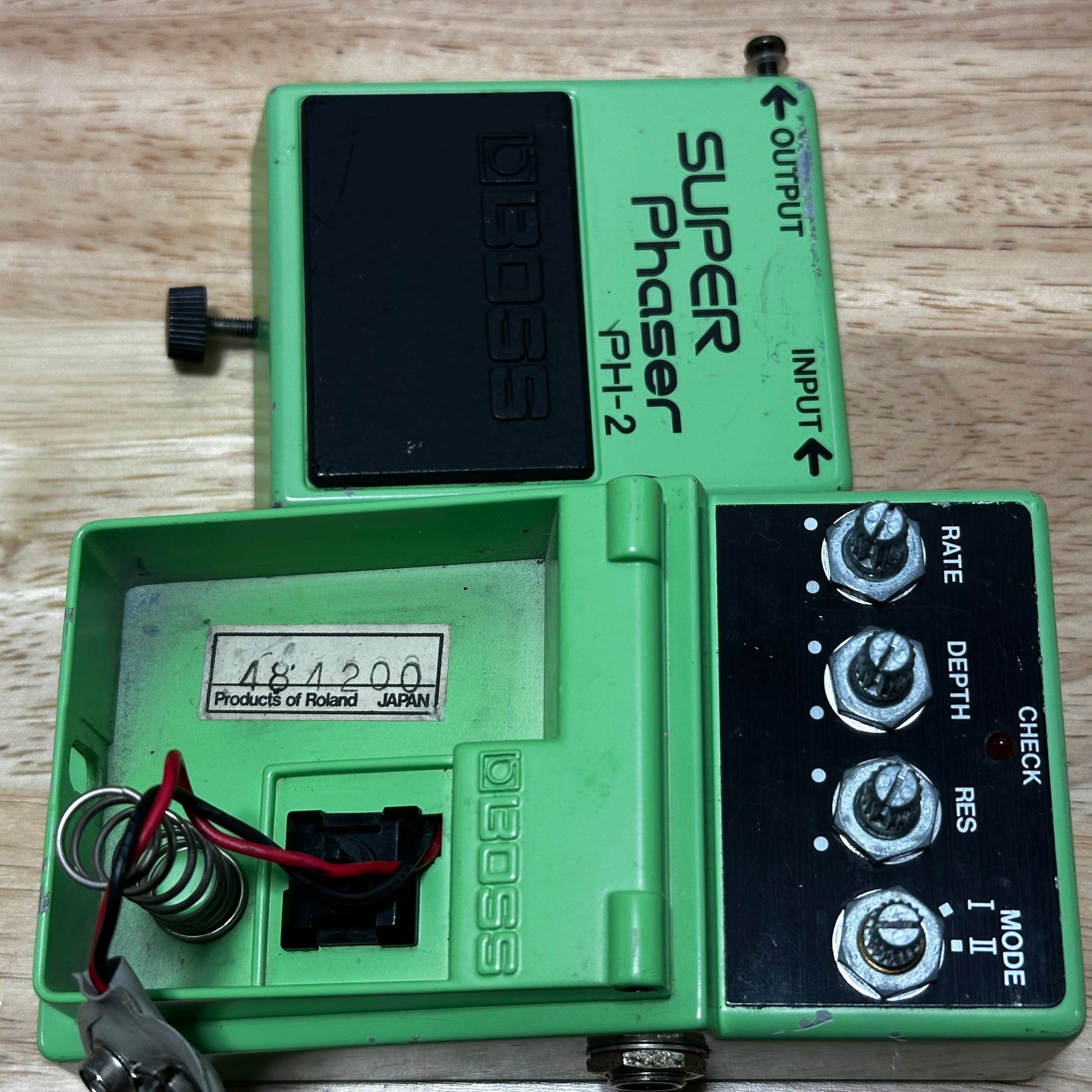

This effect pedal is in Excellent condition, with scattered small chips, scuffs and signs of use and age on the exterior. This does not impact sound or functionality. We replaced the original deteriorating rubber screw gasket with a brand new one and thoroughly cleaned the unit. It has also been tested with a 9v battery and compatible power supply. All functions are operational. Build date of November 1984. The original packaging and instructions are not included. This unit requires a BOSS ACA power supply or a 9V battery. Have questions about powering Boss ACA 12v pedals? Message us!

Professor’s Notes

The PH-2 is peak MIJ Boss: a phaser that doesn’t just swoosh — it moves air and makes the guitar feel bigger, like the whole rig is breathing in time. Mode I gives you that classic, chewy sweep; Mode II gets deeper and stranger without losing the note. If you think you “don’t like phasers,” this is the one that usually changes minds.

Professor’s Tips

• Set-and-forget classic: Mode I, Rate ~10–11 o’clock, Depth ~1–2 o’clock, Res ~9–10 o’clock for that chewy, musical movement that never steals the part.
• The PH-2 secret sauce: use Resonance sparingly—it’s the difference between “expensive swirl” and “too much seasickness.”
• Make it sound huge (without sounding like an effect): slower Rate, higher Depth, lower Res. This is the “recorded guitar got wider” setting.
• For the wilder side: Mode II, bump Res a touch, and keep Rate slower than you think—this gives you that syrupy, almost rotary-leaning sweep without going cartoon.
• Placement: usually after dirt for the most controlled, studio-friendly swirl. Put it before dirt only if you want the drive to chew on the movement (cool, but easier to overdo).

Specifications

Power: Battery 9V (x 1) AC Adaptor: ACA-Series (ACA-120, Optional)

Current Draw: 20 mA max at 9V

Controls: RATE, DEPTH, RESONANCE, MODE

Others: Pedal Effect Switch (FET Electronic Switch

Jacks: INPUT, OUTPUT, AC adaptor

Phase shift: 12 steps, 2160 degrees

LFO Speed: 14 sec - 100m sec

Residual Noise: Less than -80dBm (IHF-A)

Maximum Input Level: -5dBm

Gain: Unity

Input Impedance: 1M Ohm

Output Load Impedance: More than 10K Ohms

Minimum Operating Input Level: -60dBm at 250Hz

Dimensions: 70(W) x 55(H) x 125(D) mm, 2 3/4(W) x 2 3/16 (H) x 4-15/16(D) inches

Weight: 400g/14oz
