Free the Tone MS-2V MS SOV Overdrive

Professor’s Notes

Natural, dynamic and fluid overdrive with great midrange density. Lovely from edge of breakup to full roar.

Condition

This effects pedal is in Very Good condition with scattered chips and scuffs on the exterior. This does not impact sound or functionality. This unit has been thoroughly cleaned and tested with 9v battery and compatible power supply. All functions are operational. The original packaging and instructions are not included.

Description

The MS-2V was made based on the MS SOV SPECIAL which was born out of a collaboration with Matt Schofield. It provides a natural overdrive sound without losing the original character of your guitar’s tone.

The power is increased internally to +/- 15VDC to provide a wide dynamic range, and at the same time it prevents guitar signal degradation when bypassed by implementing the HTS (Holistic Tonal Solution) circuit. It also has a very low S/N ratio and provides a fatter and smoother overdrive tone.

·Wide dynamic range and powerful expression based on ±15 Vdc internal boosting

·Incredibly high signal-to-noise ratio.

·Exceptional sound stability by using long-life high reliability components.

·NOTE: Due to relatively large current consumption, we recommend to use an AC adapter.

Specifications

Input impedance: 1MΩ

Output load impedance: max. 200Ω

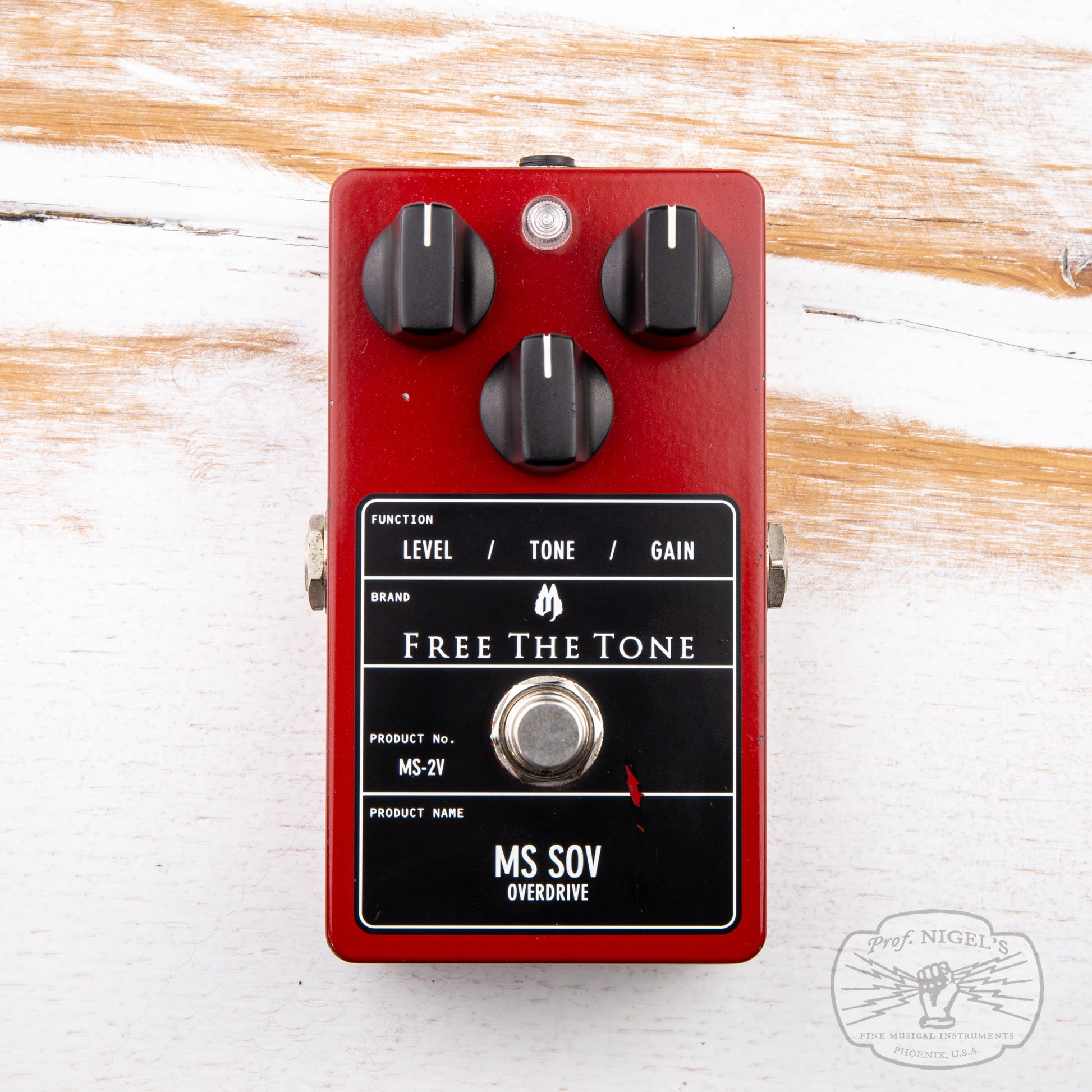

Controls: GAIN, TONE, LEVEL

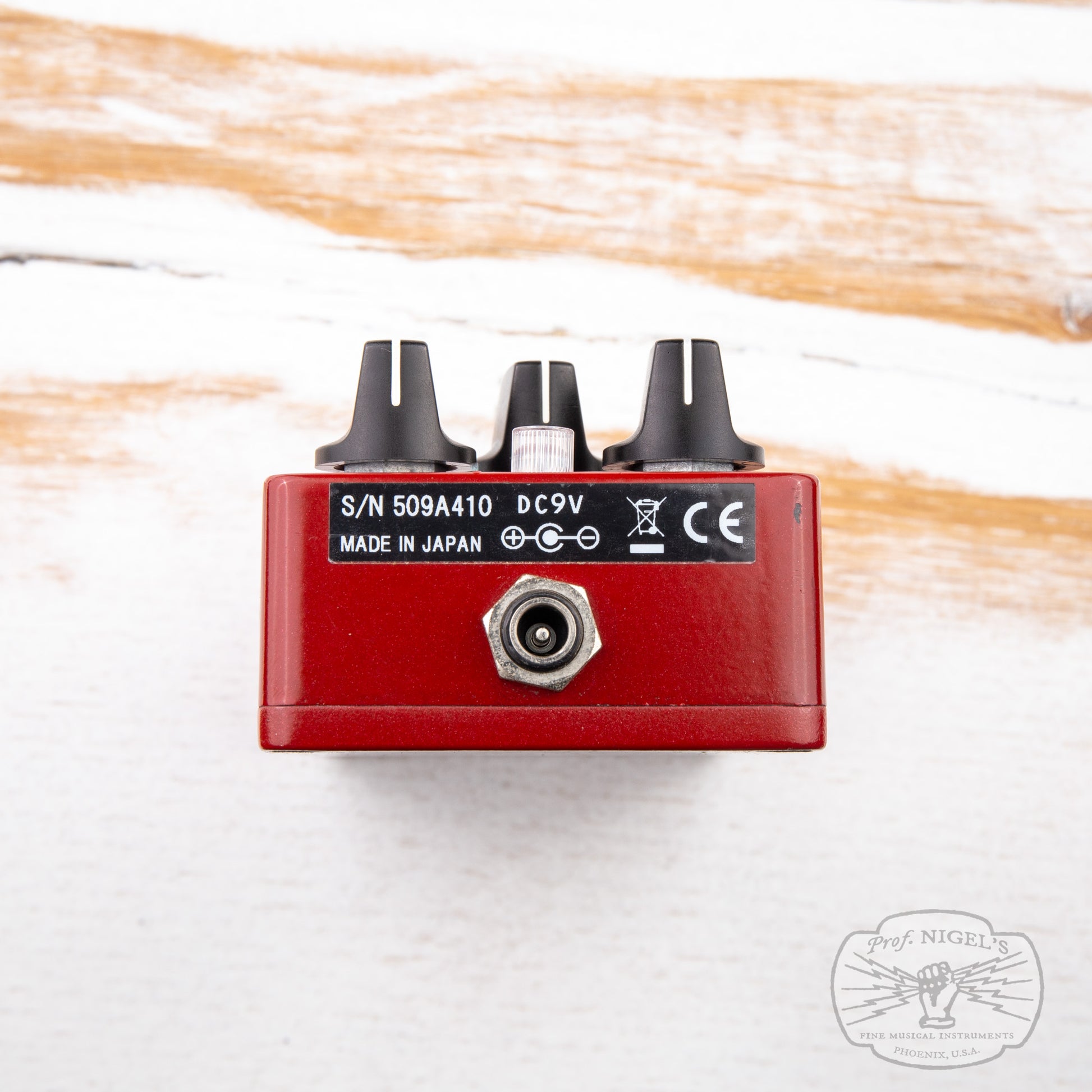

Terminals: 2× 1/4" phone jacks (for input and output), 1x DC9V input jack (for AC adapter)

Power supply: 9-volt battery (PP3/006P), AC adapter

Current consumption: approx. 90 mA (max.)

Dimensions: 72W × 115D × 50H mm (incl. protuberances such as footswitches, jacks, etc.)

Weight approx. 250 g (excl. battery)
