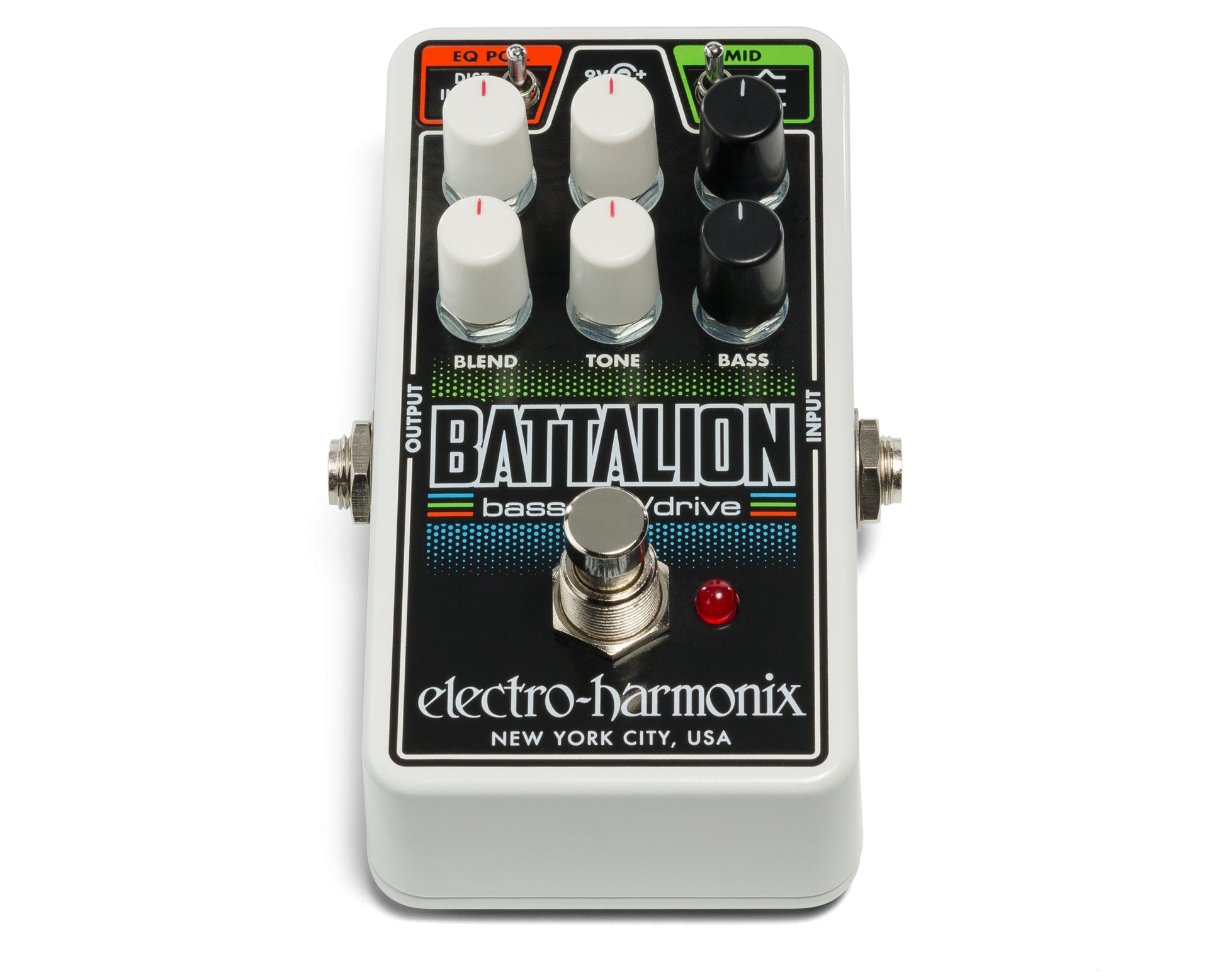

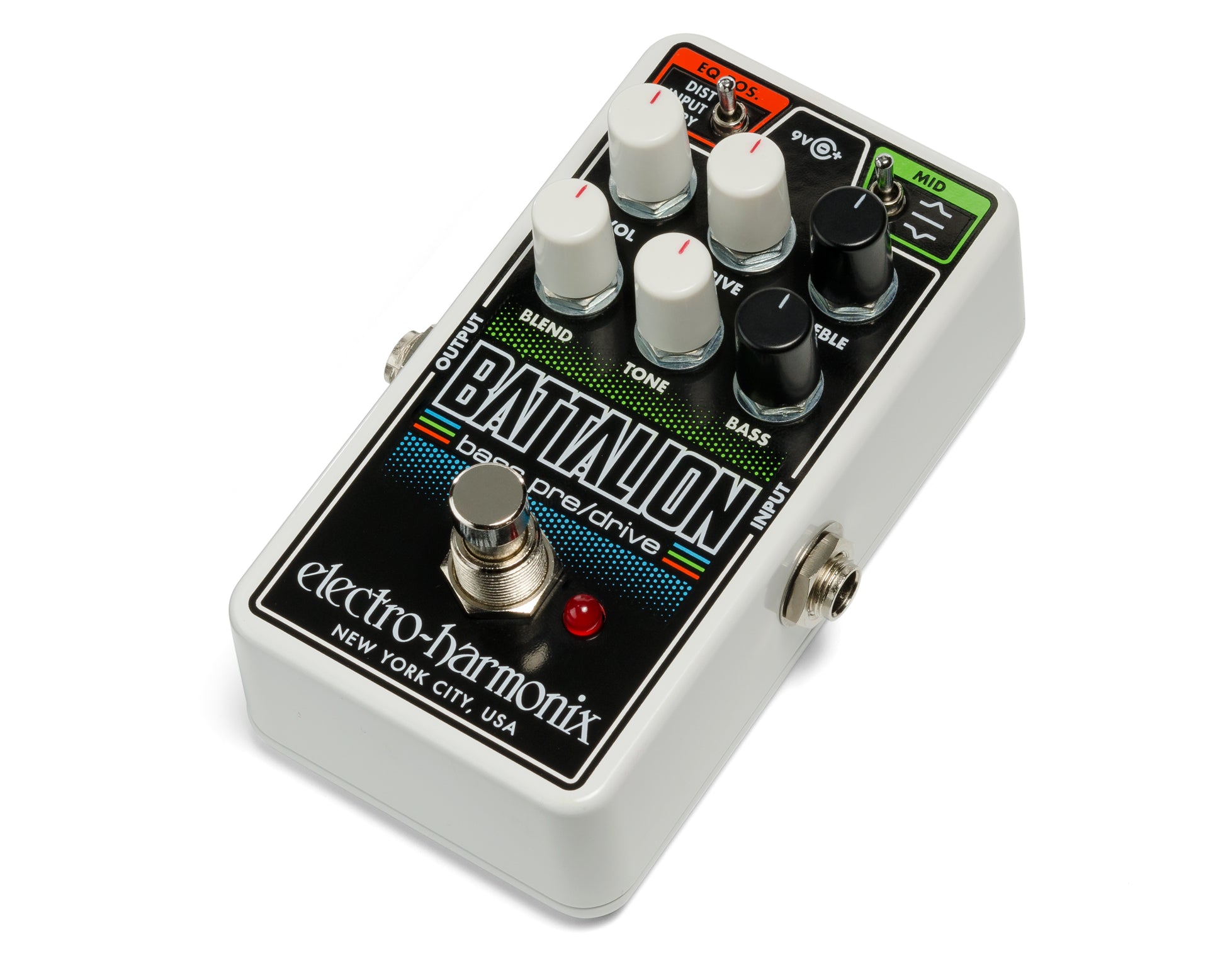

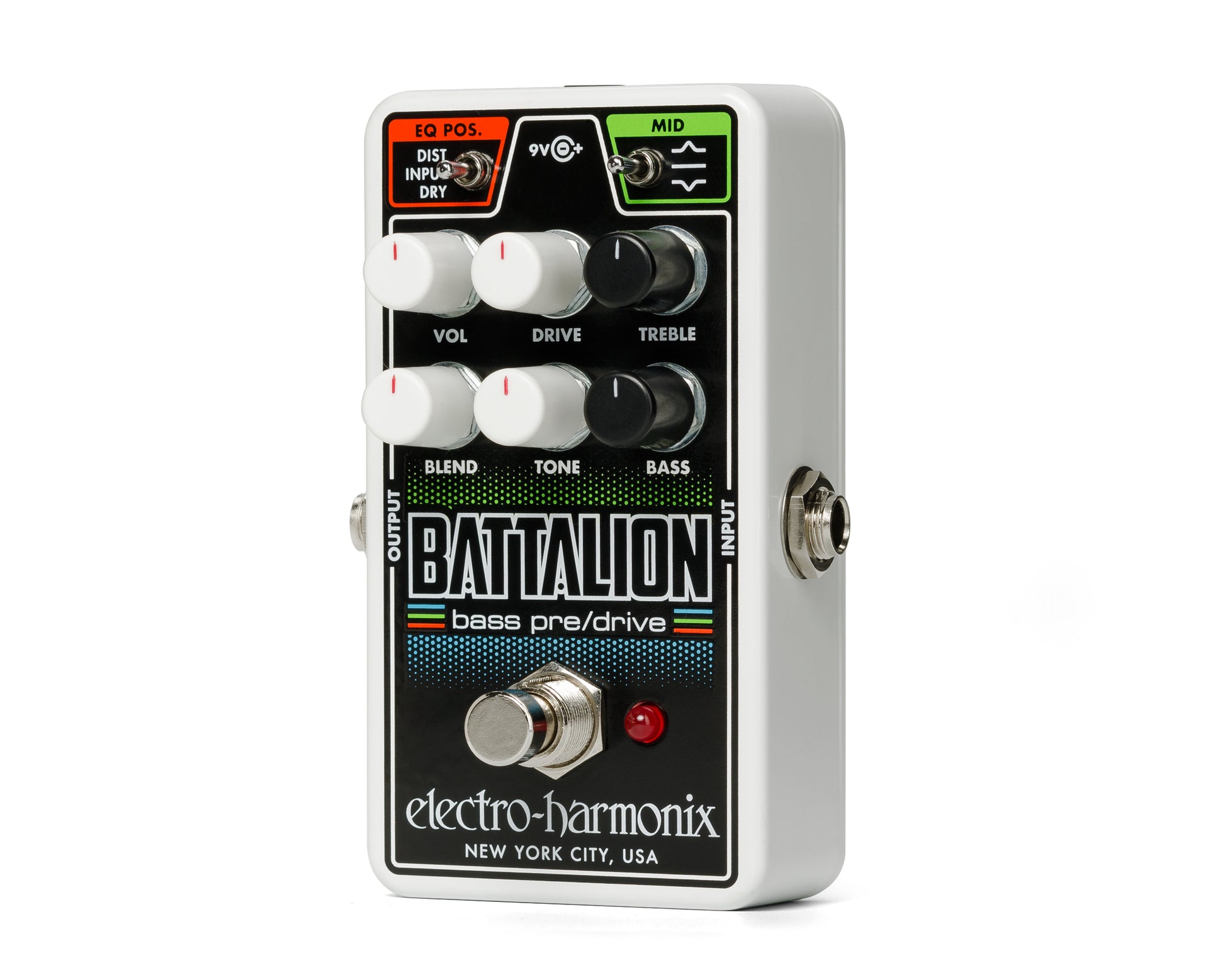

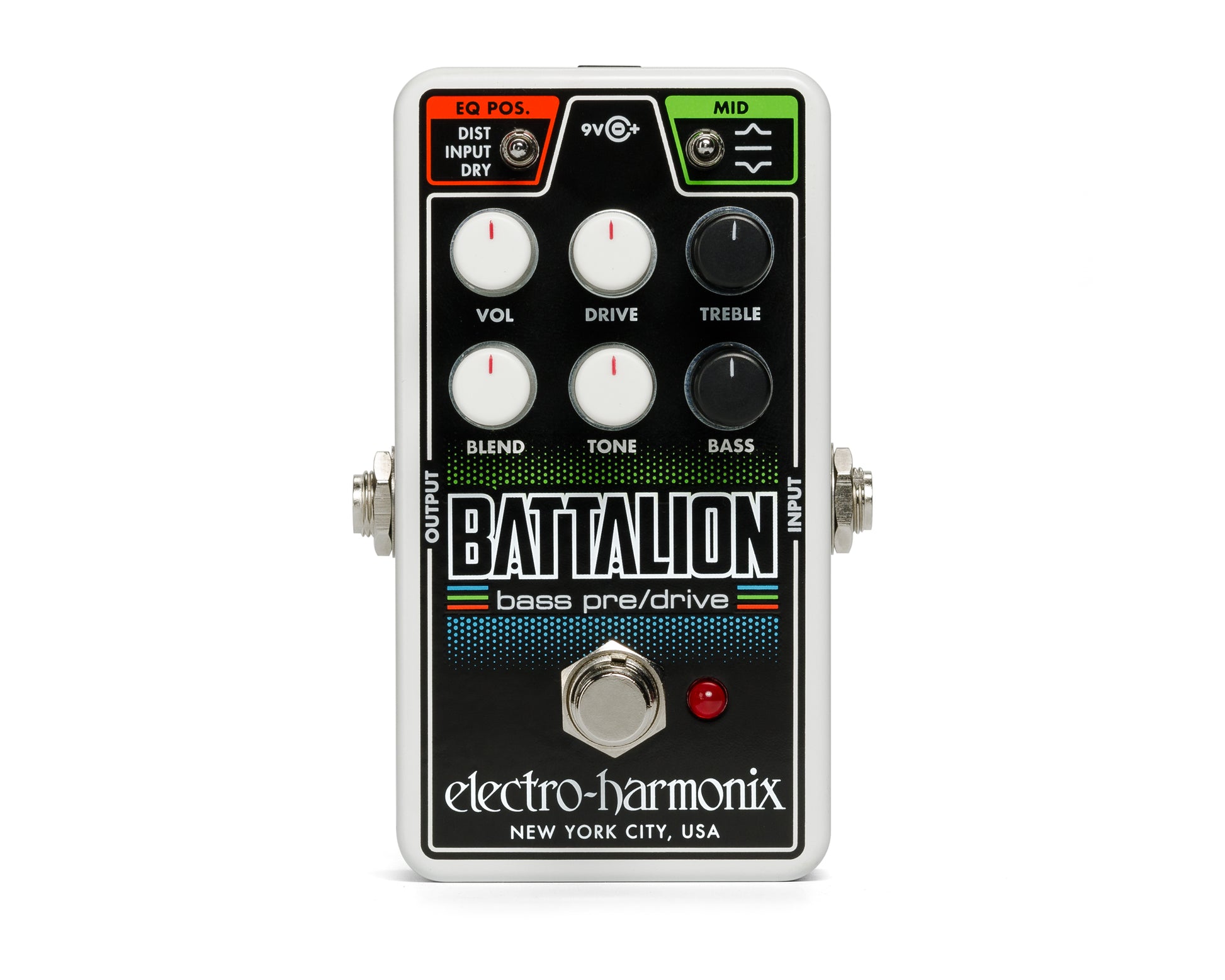

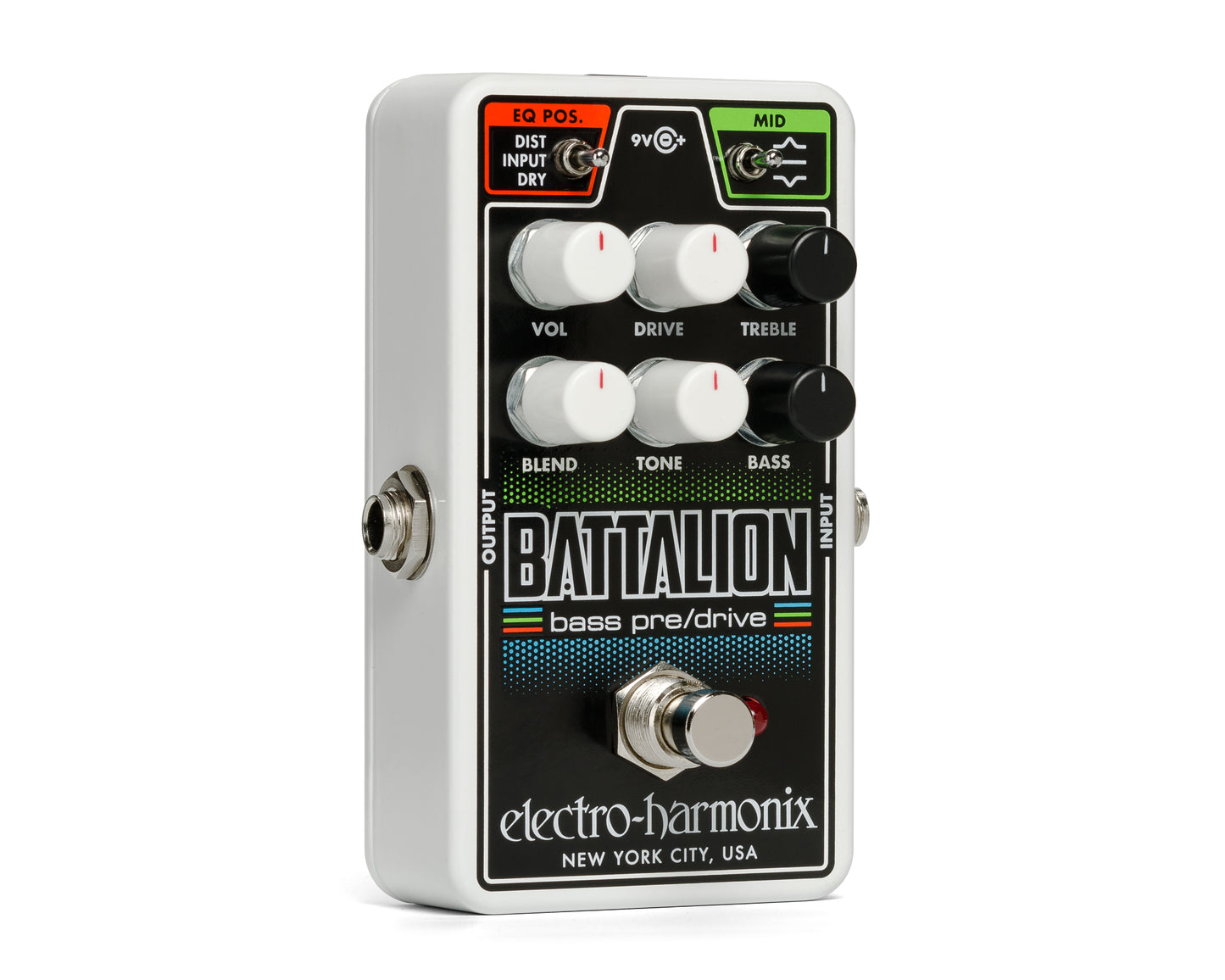

Nano Battalion Bass Preamp & Overdrive

🚚 FAST & FREE SHIPPING from Phoenix, AZ! Professor Nigel’s is an authorized Electro-Harmonix dealer.

Professor’s Notes

Nano Battalion is for bass players who want real control over their tone in a compact footprint. It combines analog drive, flexible EQ shaping, and direct-output capability into a single box that can anchor a pedalboard or simplify a recording setup. If you need a small, dependable way to shape your sound and go from subtle grit to full drive without losing low-end authority, this is a very practical solution.

Description

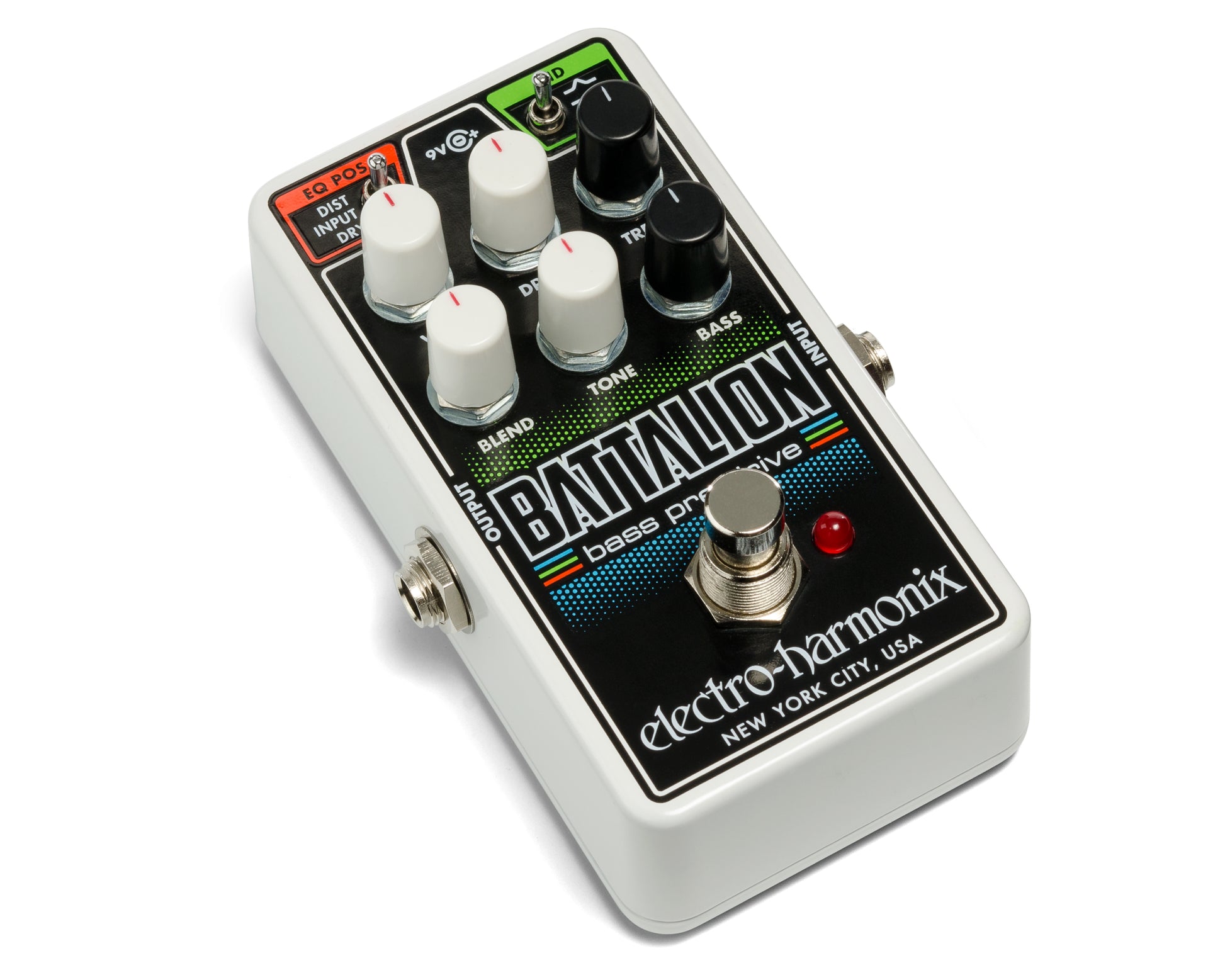

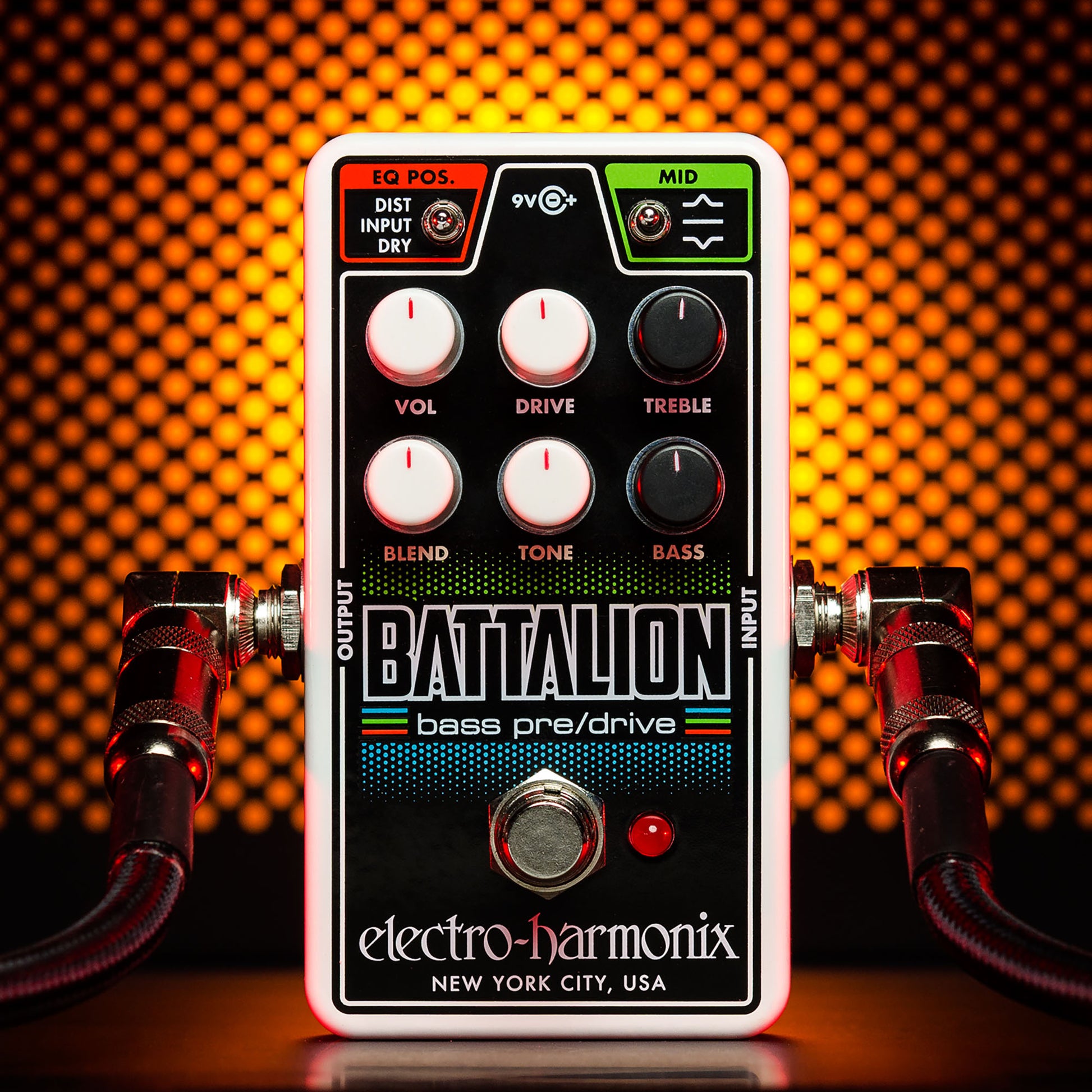

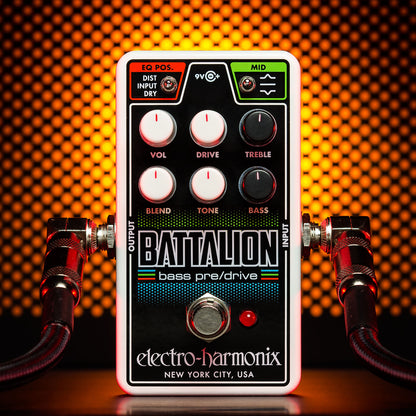

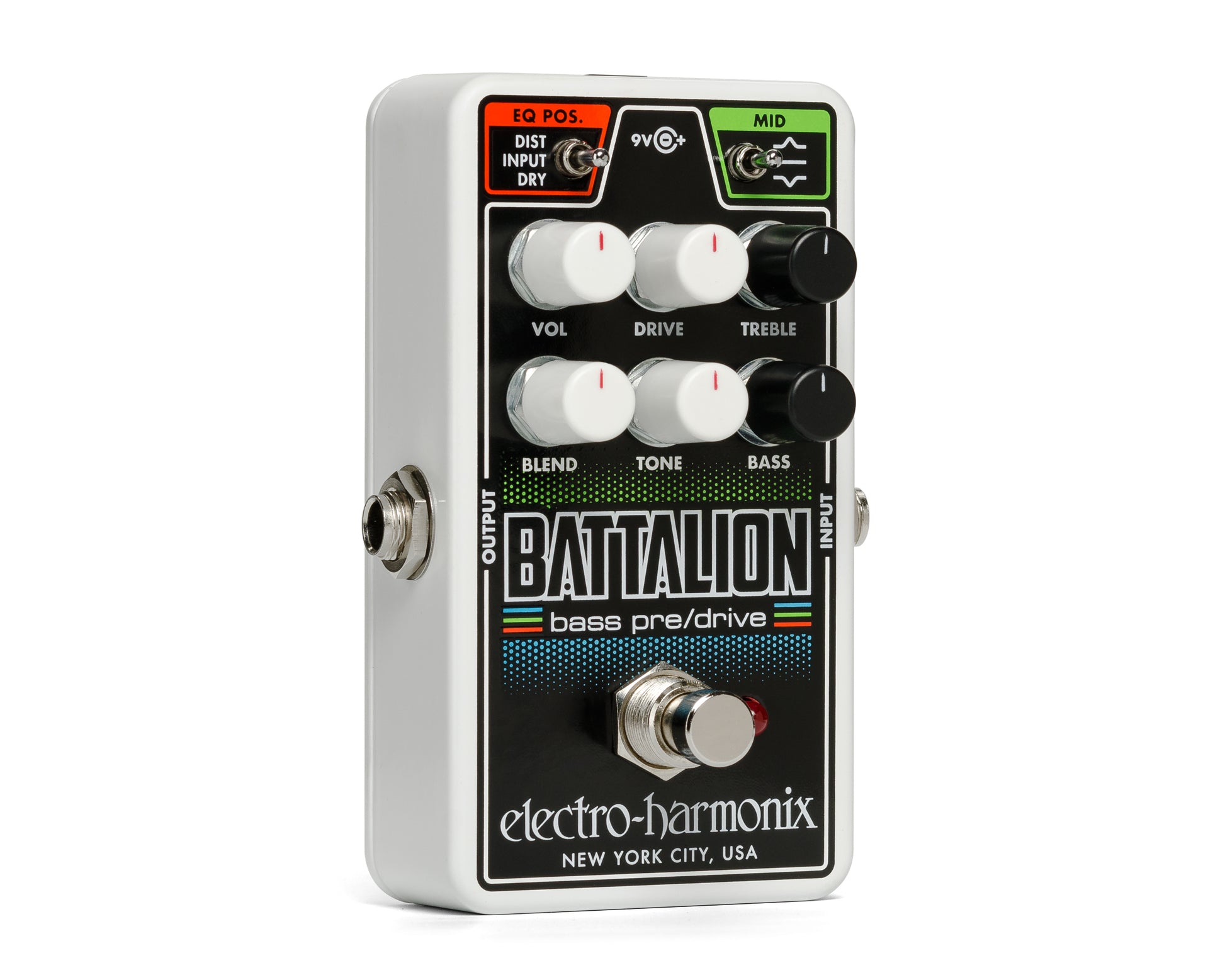

The Electro-Harmonix Nano Battalion is an all-analog bass preamp and overdrive designed to give players precise control over drive character, tonal balance, and signal routing in a compact format.

Its MOSFET-based drive circuit covers a wide range, from light overdrive that adds presence and definition to heavier distortion suitable for aggressive styles. A three-band EQ with selectable midrange boost or cut allows quick shaping of low-end weight, midrange focus, and top-end clarity, while the EQ-position switch lets you determine where the EQ sits in the signal path for different tonal responses.

A balanced TRS output provides a direct connection to a console, interface, or recording system without requiring additional gear. Whether used on a pedalboard, as a front-end tone shaper, or as a compact direct solution, Nano Battalion is built to keep bass tones controlled, consistent, and easy to manage.

Specifications

• Type: All-analog bass preamp & overdrive pedal
• Controls: Volume, Blend (clean/distorted mix), Drive (saturation), Tone (cuts highs from the distorted path), Treble, Bass, EQ-Position switch (Distortion/Input/Dry), Mid switch (±9dB at 500 Hz)
• Bypass: Buffered bypass

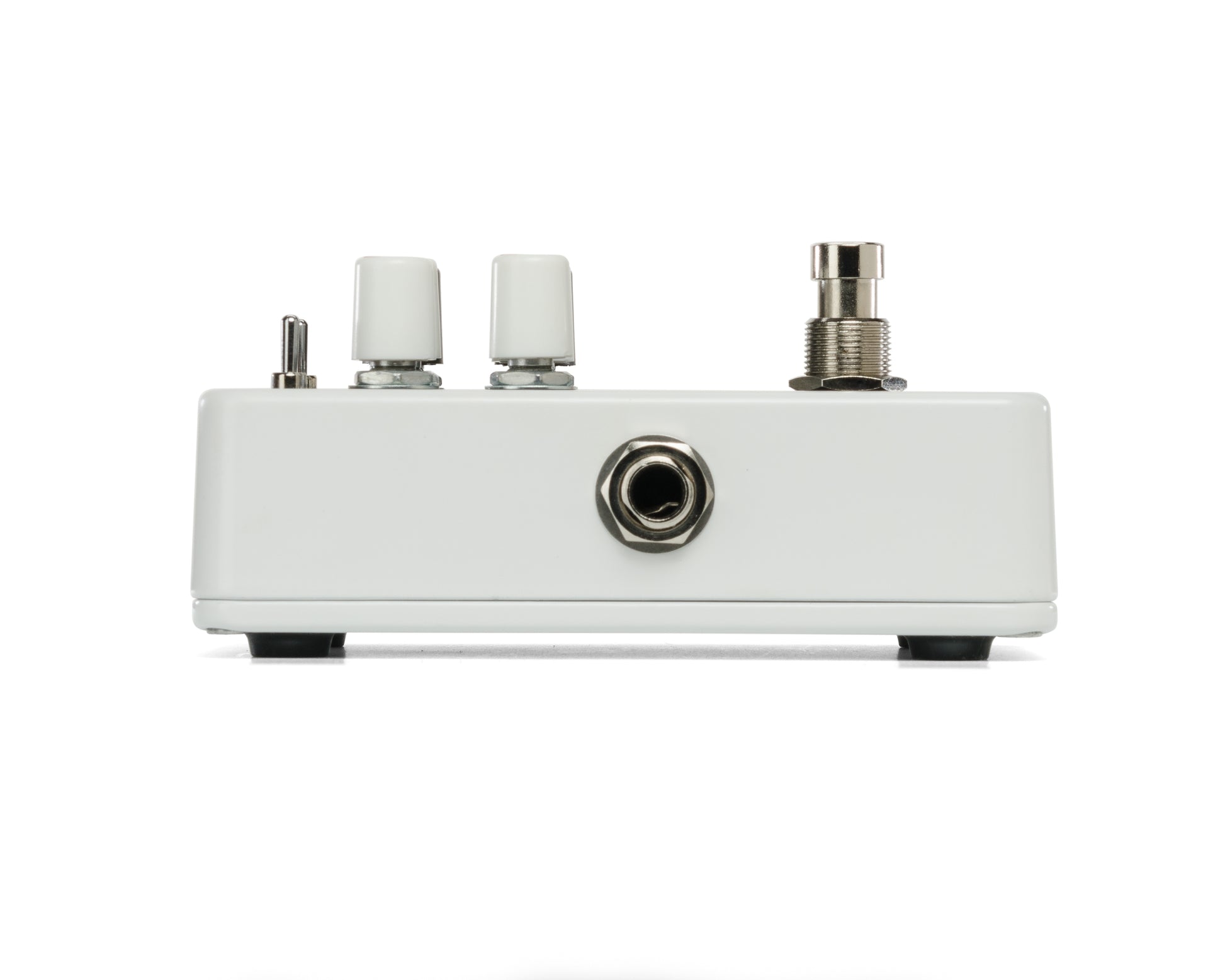

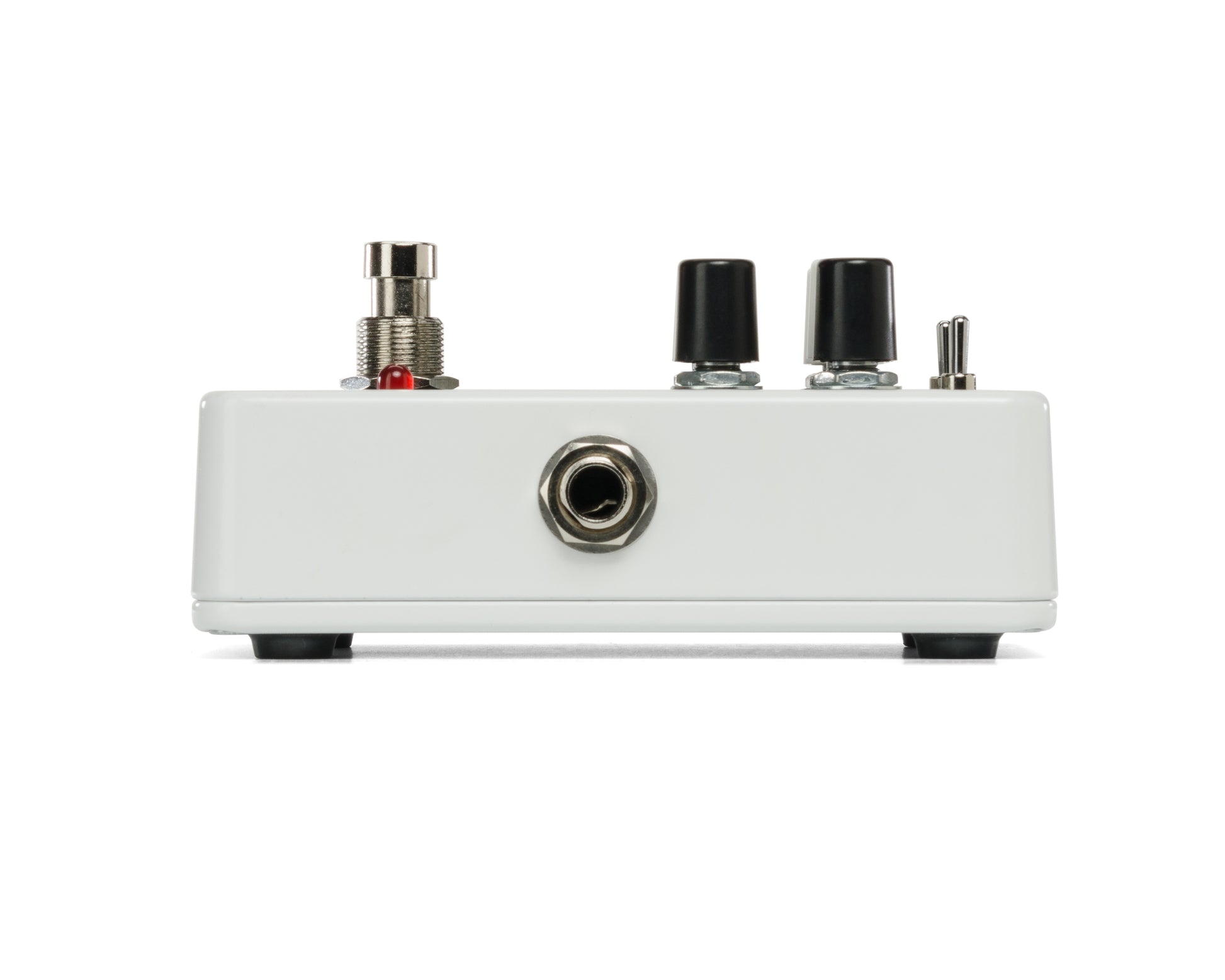

• Audio: ¼″ input, ¼″ output (TS for unbalanced, TRS for balanced)

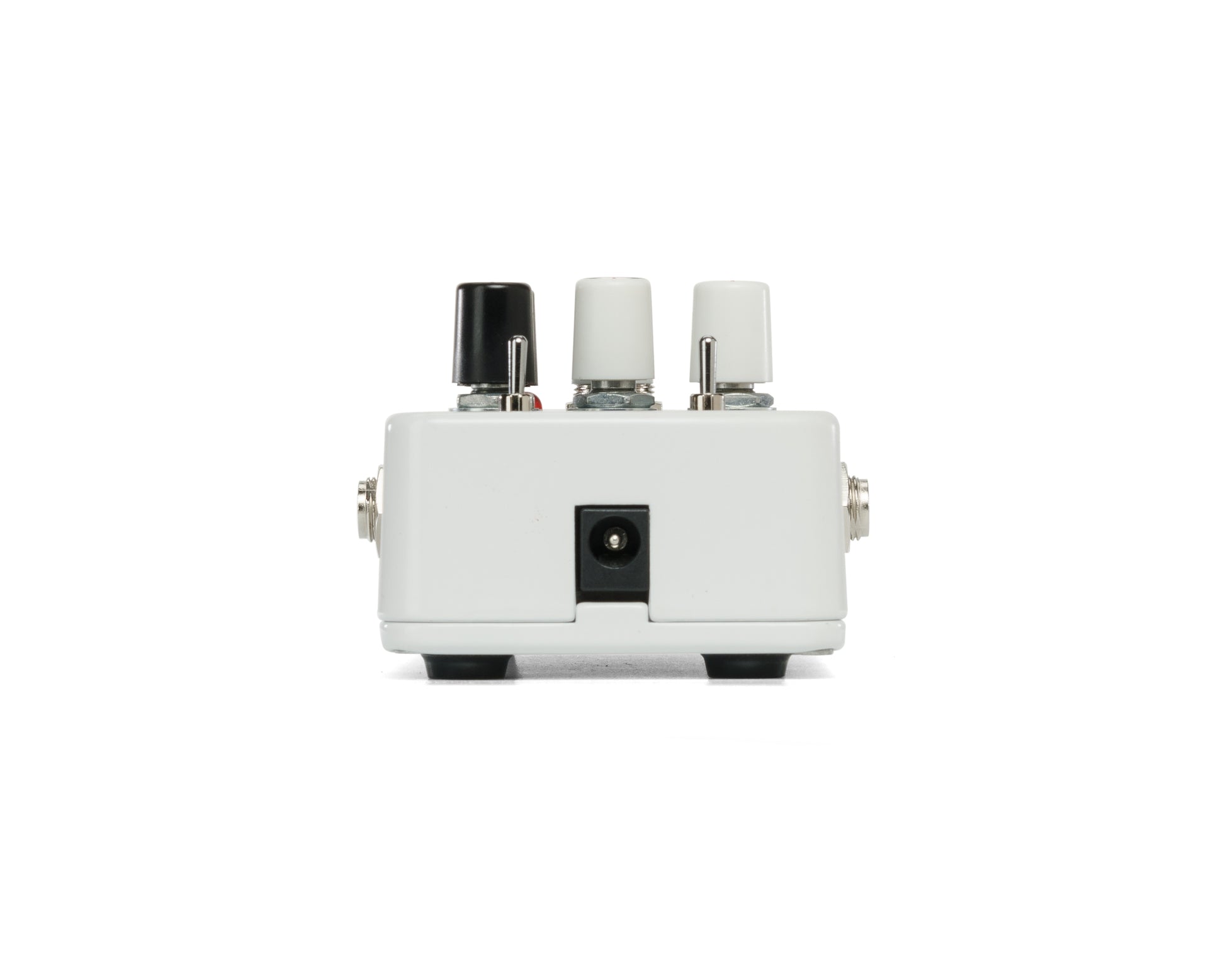

• Power: 9.6 VDC adapter included; current draw ~45mA
• Dimensions: Approx. 4.5″ x 2.75″ x 2.1″
• Enclosure: Die-cast aluminum

What’s Included

• Nano Battalion Bass Preamp & Overdrive pedal
• 9.6 VDC power adapter (included)
• Original packaging and documentation
