Nano Deluxe Memory Man

🚚 FAST & FREE SHIPPING from Phoenix, AZ! Professor Nigel’s is an authorized Electro-Harmonix dealer.

New inventory ships 10/28/25

Professor’s Notes
Nothing sounds like a Memory Man. The Nano Deluxe captures that legendary analog bloom — lush repeats, velvety chorus, and hypnotic vibrato — all in a compact box that complements every serious pedalboard.

Description

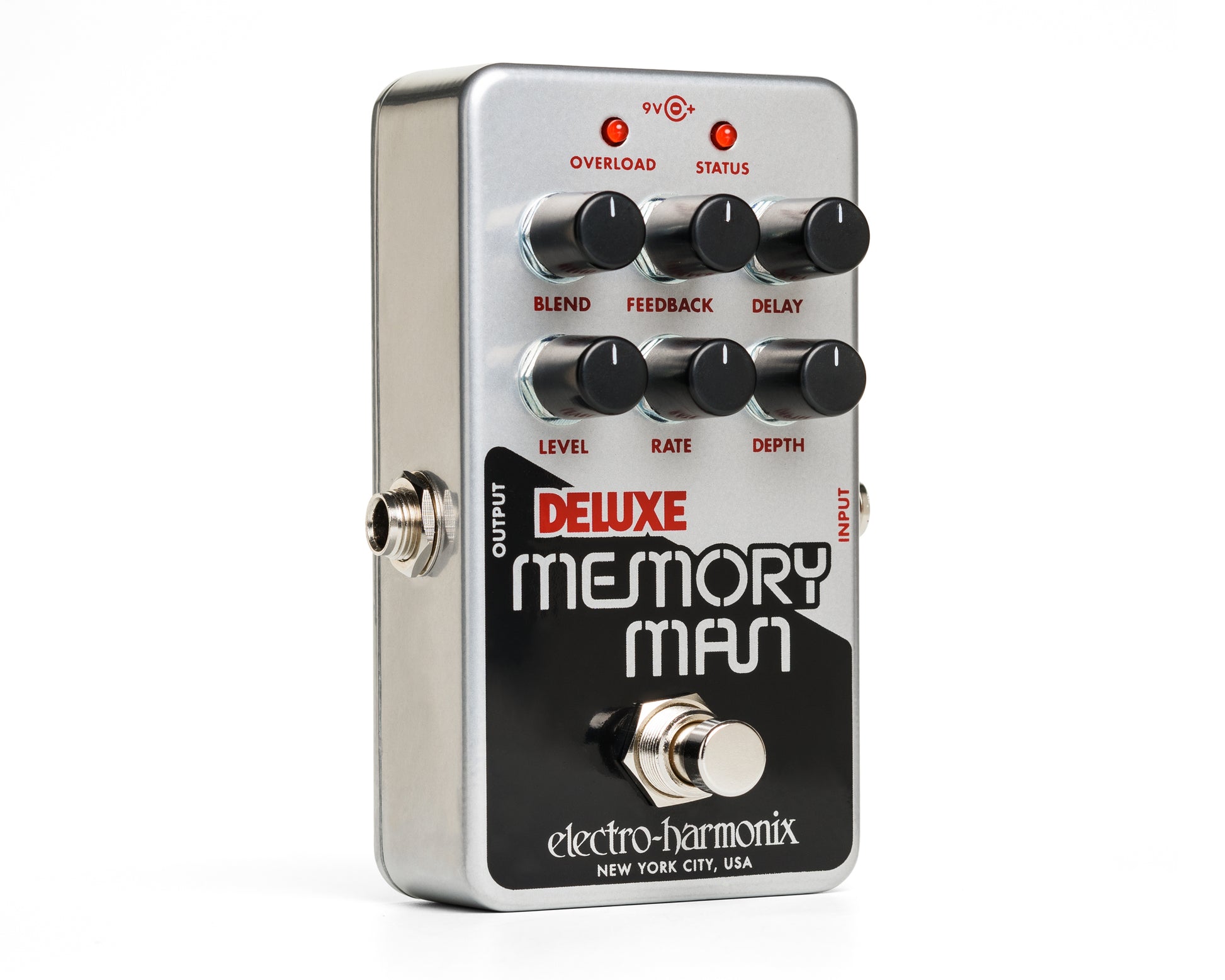

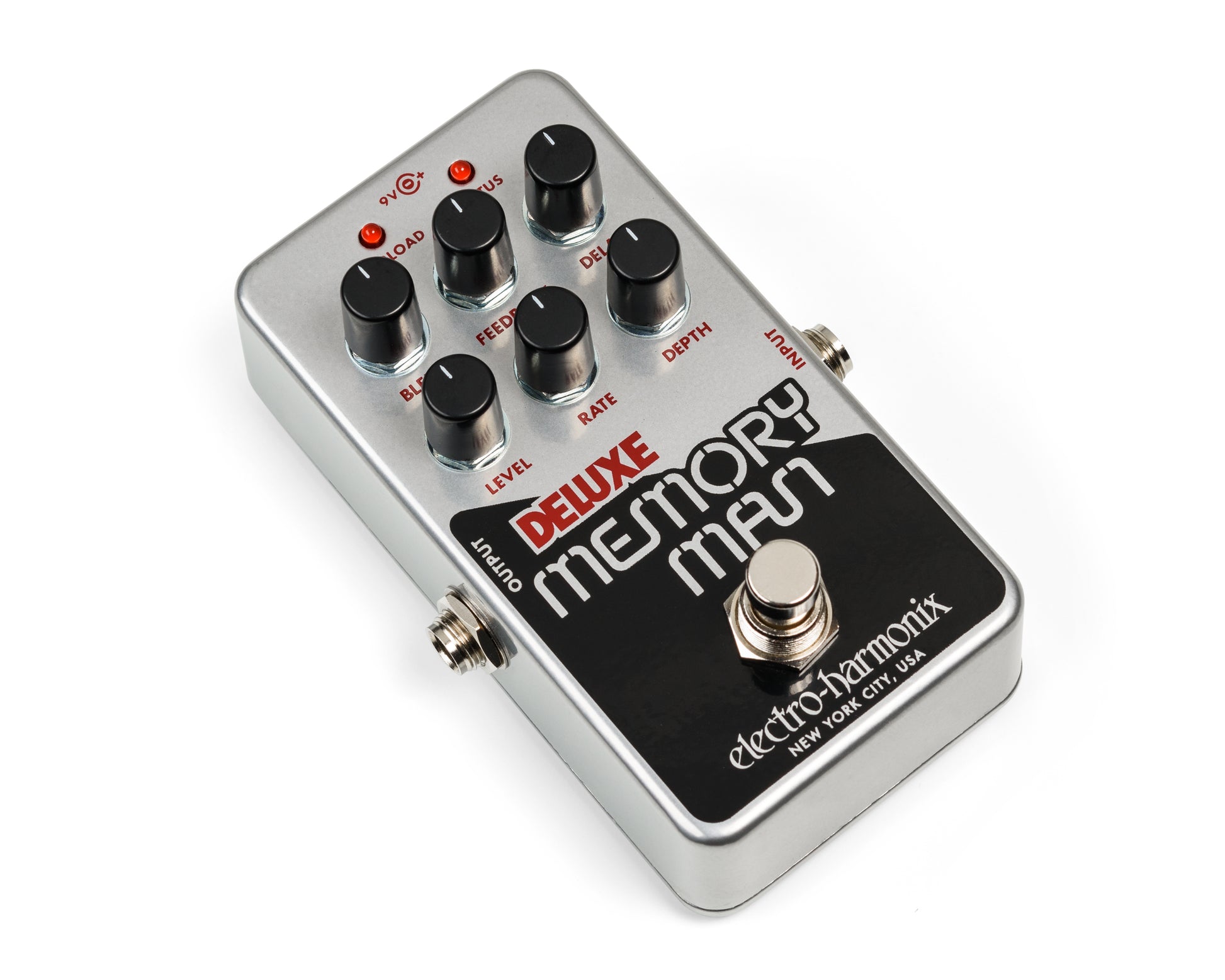

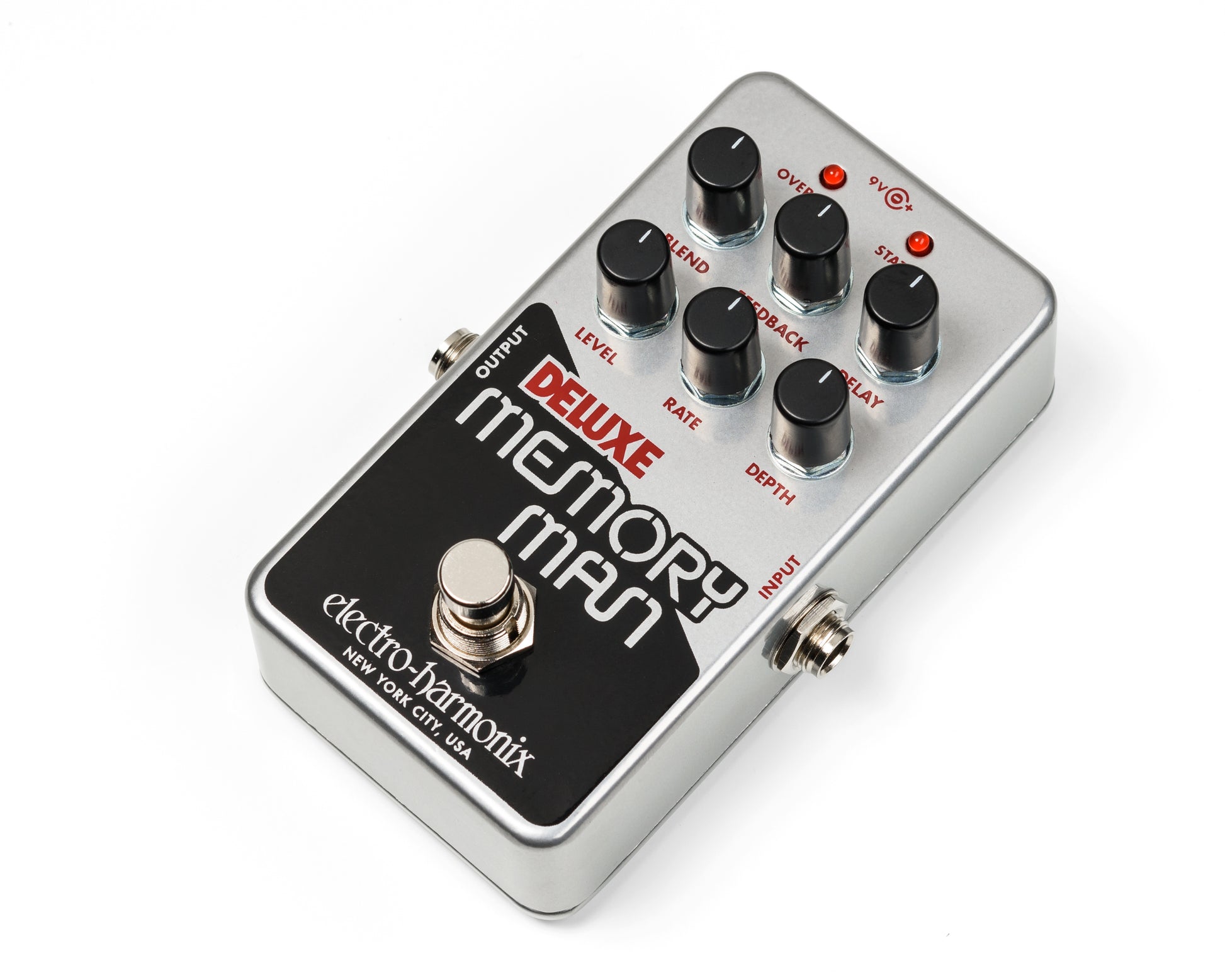

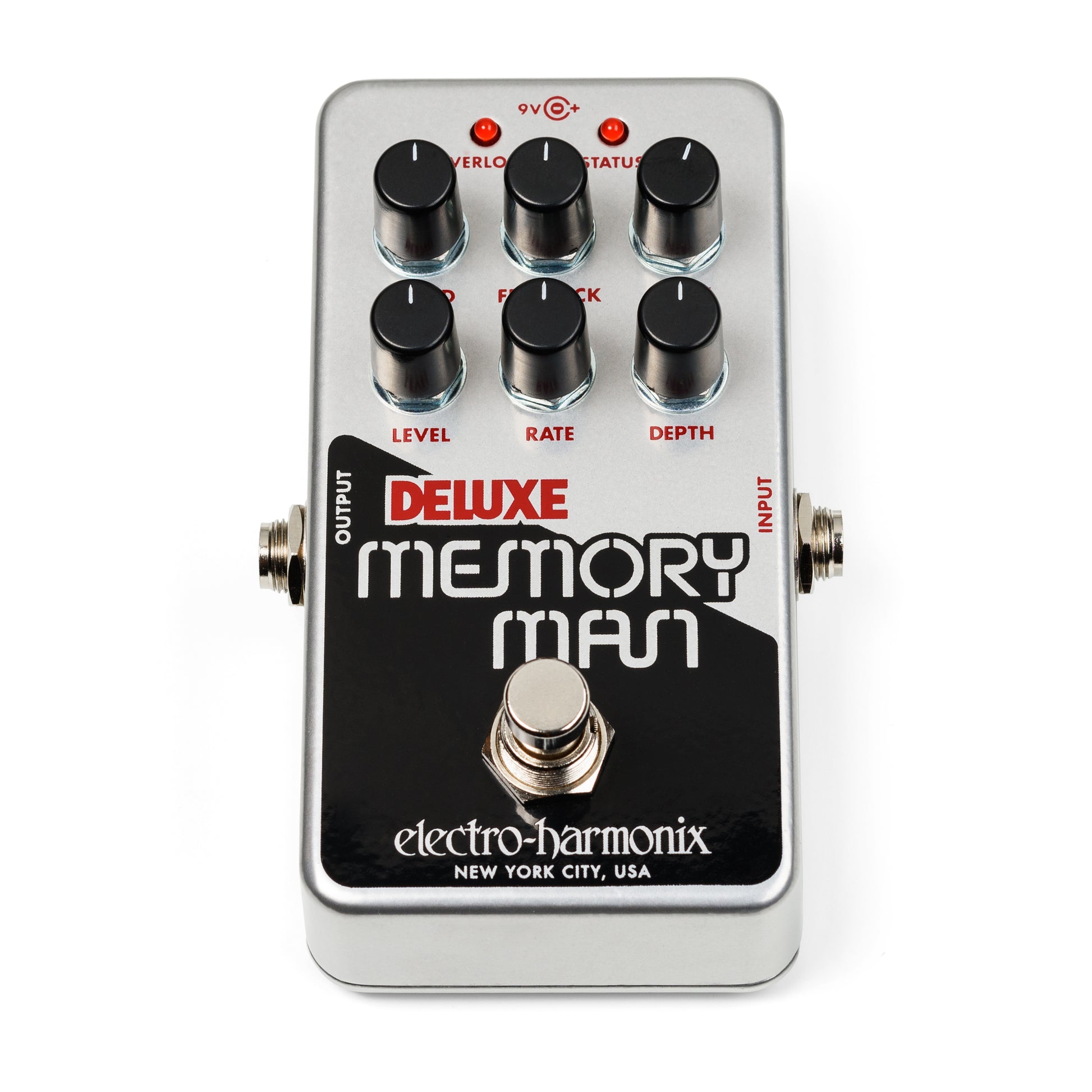

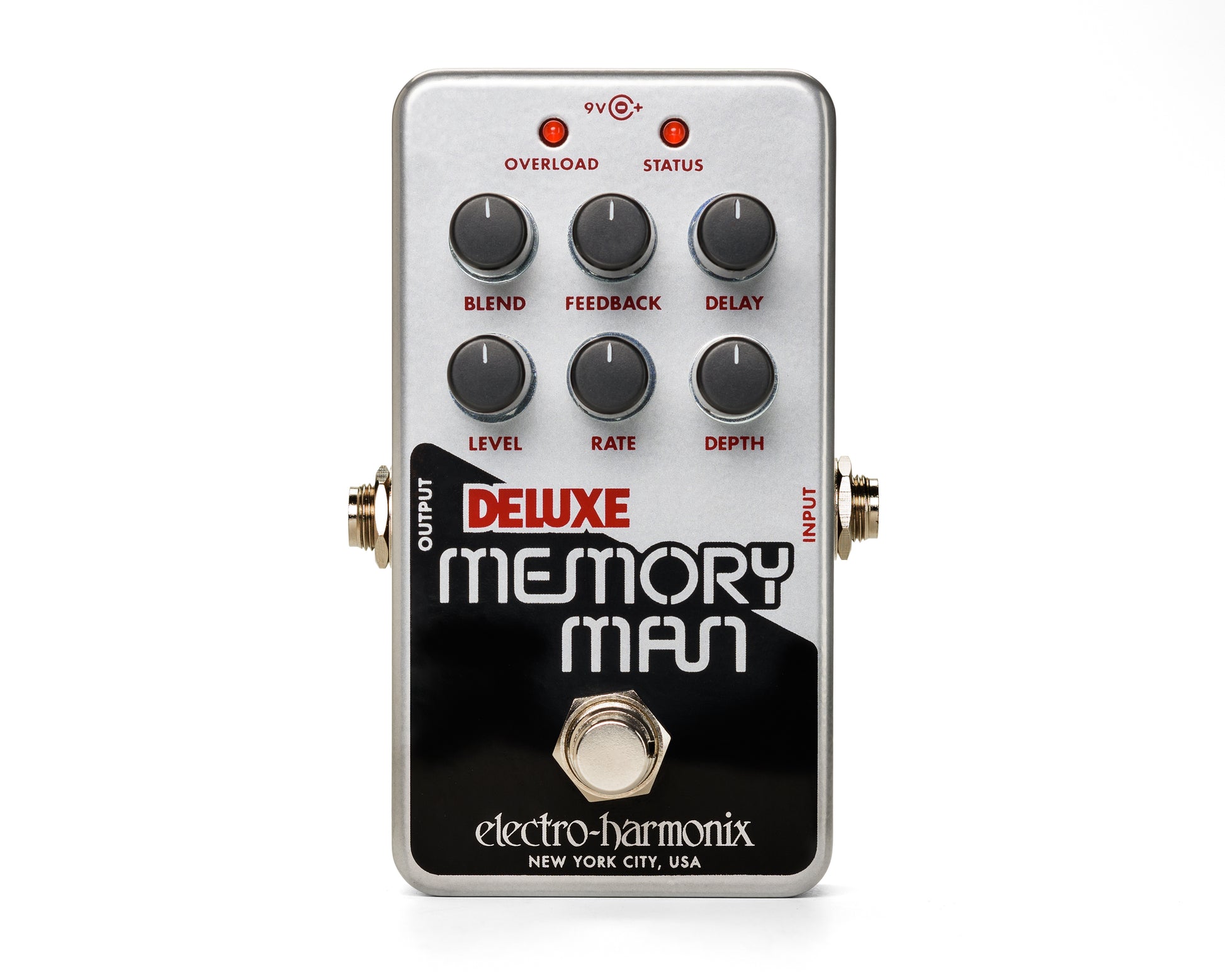

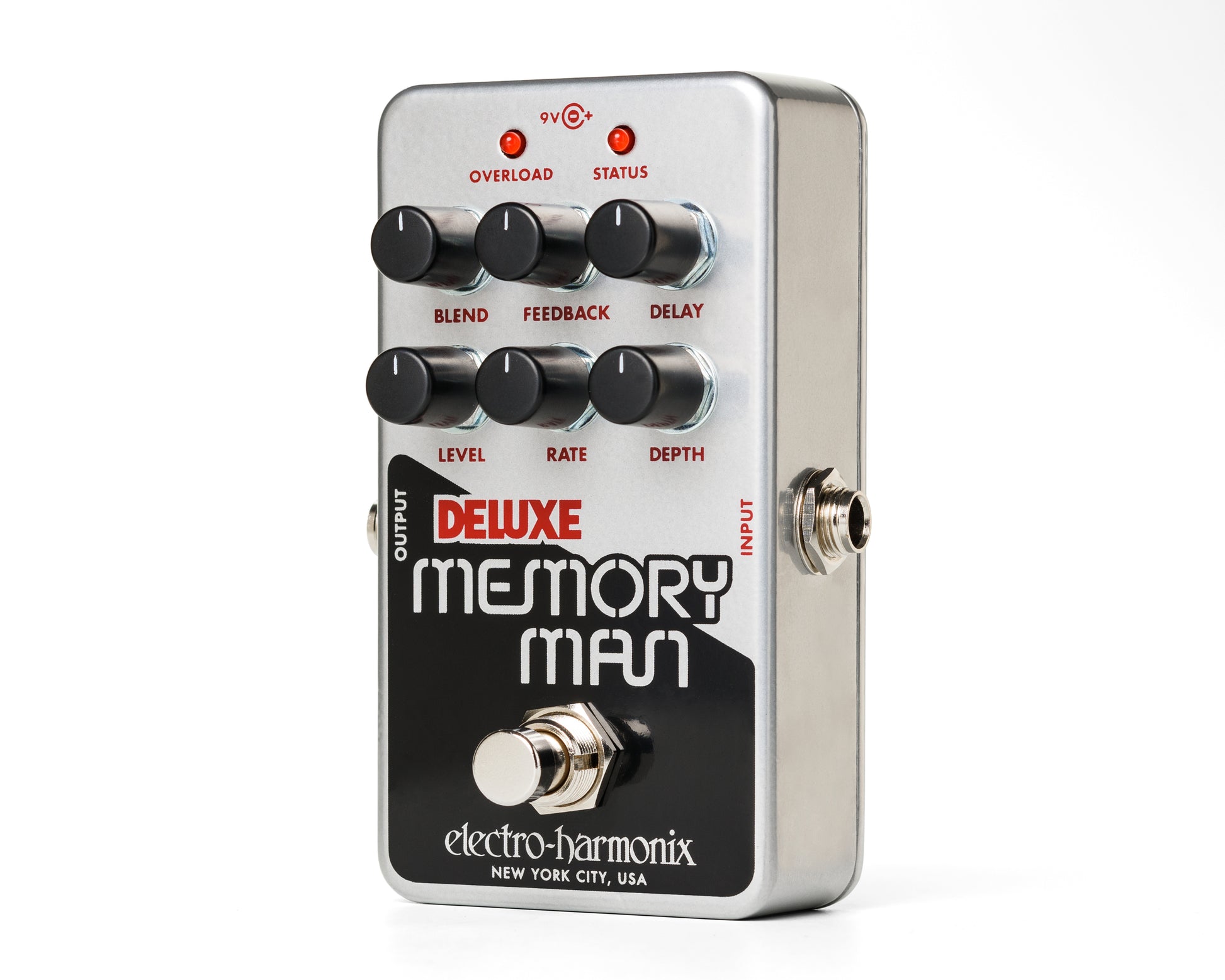

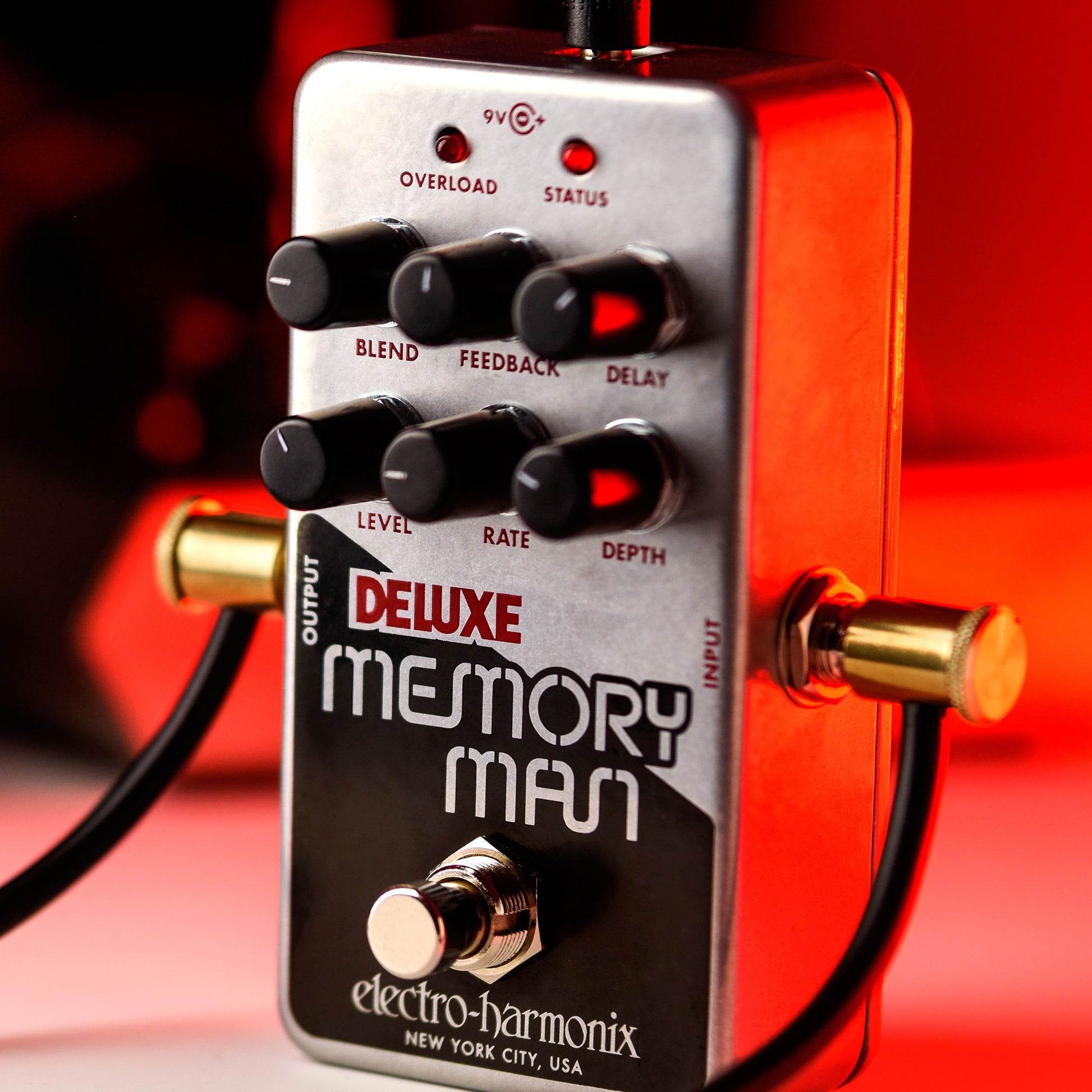

The Nano Deluxe Memory Man delivers the analog delay, chorus and vibrato heritage of the classic while adding modern refinements. Delay times span 30 ms to 550 ms with the Delay knob; Feedback controls repeat counts right up to runaway oscillation; Blend sets the mix between dry and delayed signal; Depth and Rate control the added modulation; and a Tails switch lets your echoes ring out or cut when bypassed. Rugged, compact pedalboard-friendly format with included 9.6 VDC power adapter.

Specifications

• Type: Analog delay with modulation (chorus, vibrato)
• Controls: Delay (30–550 ms), Feedback, Blend, Level, Depth, Rate
• Bypass: Selectable True Bypass / Tails mode
• Audio: Mono input/output

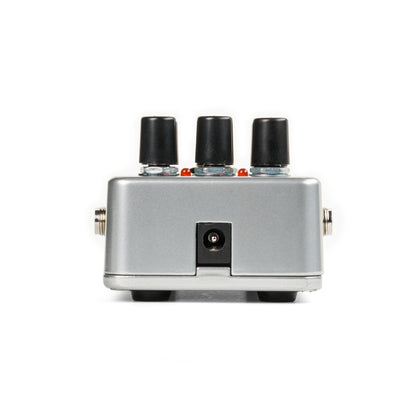

• Power Supply: 9.6 VDC / 200 mA adapter (included)
• Current Draw: ~150 mA
• Dimensions: 4.5″ x 2.75″ x 2.1″
• Enclosure: Die-cast aluminum

What’s Included

• Nano Deluxe Memory Man pedal
• 9.6 VDC power adapter
• Original packaging and documentation
