Near Mint Boss DC-3 Digital Dimension w/ Box Blue Label 1988 Vintage MIJ Made in Japan

Boss DC-3 Digital Dimension – 1988 Blue Label Made in Japan

Professor’s Notes

The digital successor and close relative to the DC-2 Dimension C with more adjustability thanks to having four knobs instead of presets. Don’t let “Digital” put you off this effect, it’s full of character and vibe just like the early DD series delay pedals. Is it a chorus? An enhancer? Maybe just a “make better” pedal? Whatever it is, use it to access great sounding modulation and spatial sweetening for just about any source. Another Dimension, another Dimension…

Condition

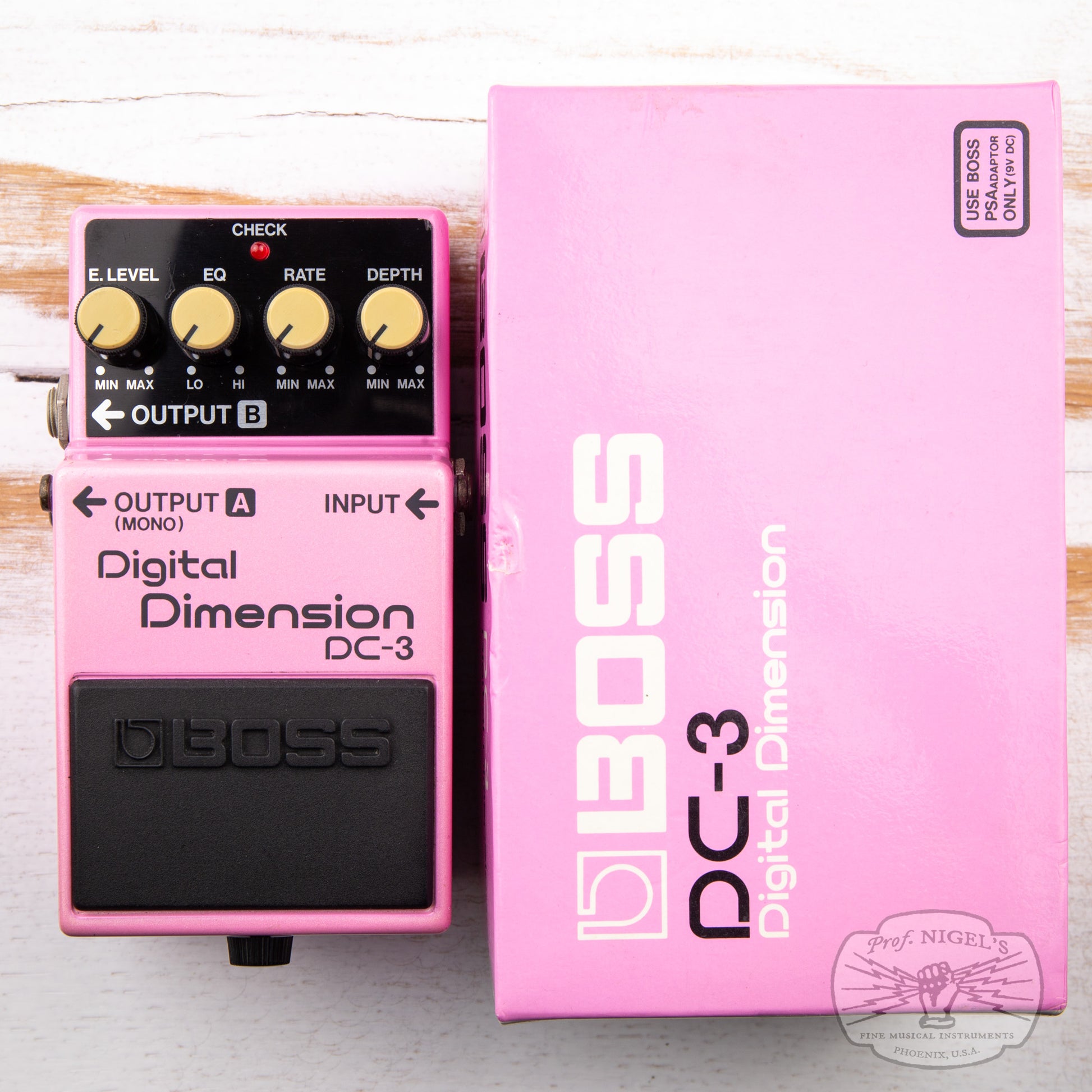

This effects pedal is in Excellent (near mint) condition. There are a very few signs of use on the exterior. This unit has been thoroughly cleaned and tested with 9v battery and compatible power supply. All functions are operational. Build date of April 1988. The original box is included.

Specifications

Power: 9V DC Dry Battery, AC Adaptor (DC 9V) - BOSS PSA-120 or PSA-120T, Optional

Current Draw: 65mA (9V DC)

Controls: EFFECT LEVEL, EQUALIZER, RATE DEPTH

Jacks: INPUT, OUTPUT A/B

AC Adaptor (DC 9V) - BOSS PSA-120, PSA-120T, PSA-220 or PSA-240)

Sampling Rate: 50 kHz

DIRECT SOUND:10Hz to 60kHz/ +1-3 dB

Residual Noise: -100 dBm (IHF-A)

Input Impedance: 1 M Ohm

Output Load Impedance: 20k Ohms or more

Dimensions: 70(W) x 55(H) x 125(D) mm, 2-3/4(W) x 2-3/16(H) x 5(D) inches

Weight: 450g / 1 lb.
