Providence Phase Force PHF-1 Phaser MIJ Made in Japan

Providence PHF-1 Phase Force Phaser Pedal

Professor’s Notes

A vintage style phaser pedal with great clarity and analog density. An easy-to-use, well-designed package with a few modern tricks up its sleeve. Easy to find a great sound and wider variance in phaser speed from slow to fast than typical phasers. Use the Mid Shift switch to help the guitar cut through the mix.

Condition

This effects pedal is in Very Good condition. There are a scuffs and chips on the sides of the case, and one case screw is missing. This unit has been thoroughly cleaned and tested with compatible power supply and 9v battery. All functions are operational. The original packaging and instructions are not included. PDF instructions are available.

Manufacturer Description

The Providence PHF-1 Phase Force phase shifter pedal features speed and output level controls that let you take the sound from a gentle undulation to wild variations. The level can be set to optimally match your phrasing. Engaging the MID SHIFT switch alters the phase shift range, emphasizing the mid-high frequencies.

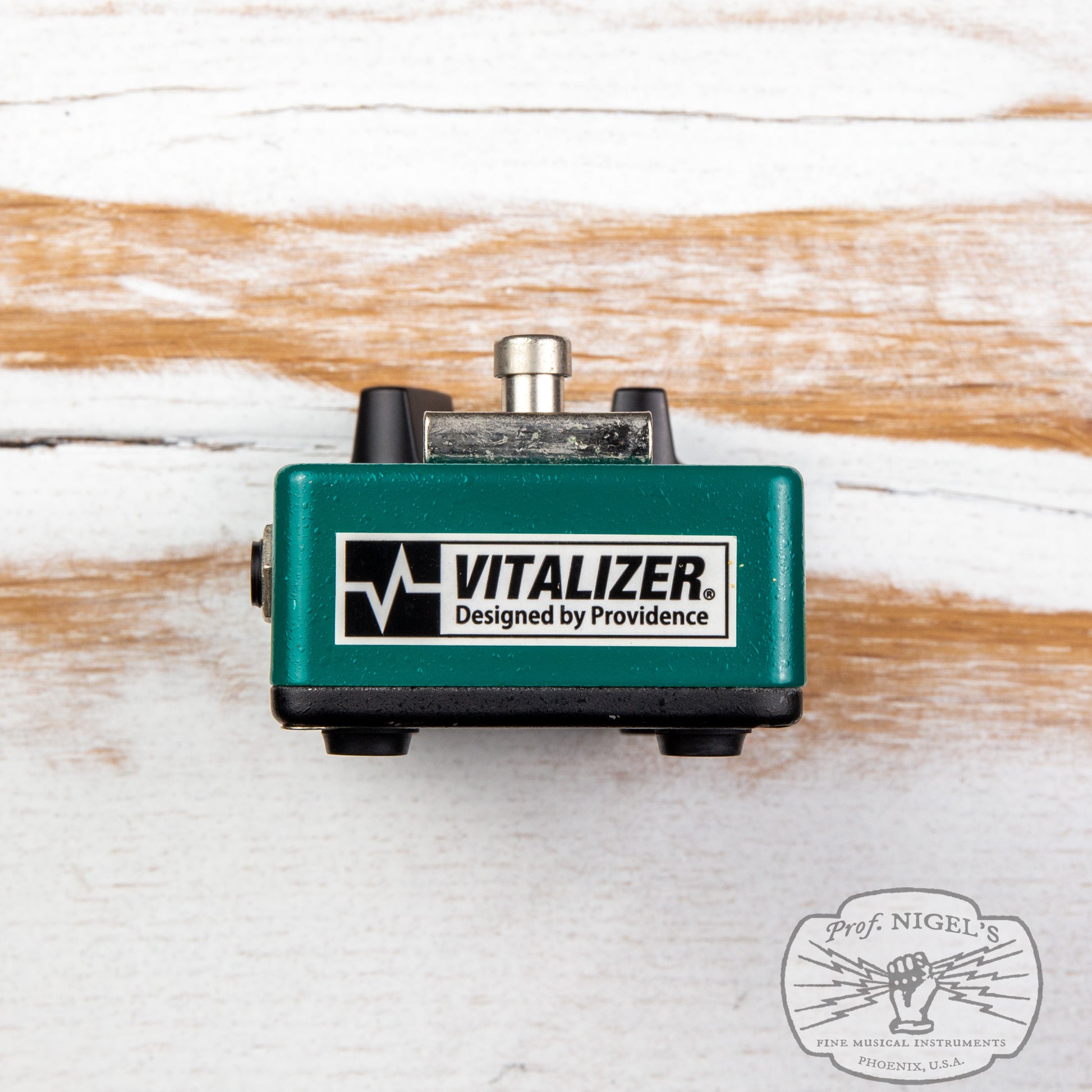

A built-in VITALIZER® circuit enables a unique phase shift sound while allowing the natural characteristics of your instrument to come through. The VITALIZER® circuit remains active when the effect is turned off, delivering an ideal signal to processors connected after the Phase Force pedal.

In addition to indicating the pedal’s on/off status, the PHF-1 LED provides effective visual battery power monitoring. When the battery voltage drops below 7 volts the LED will become dimmer and begin to go out. The effect will still operate at this voltage, but to ensure optimum performance the battery should be replaced as soon as possible

Specifications

Controls: LEVEL, SPEED, MID SHIFT switch

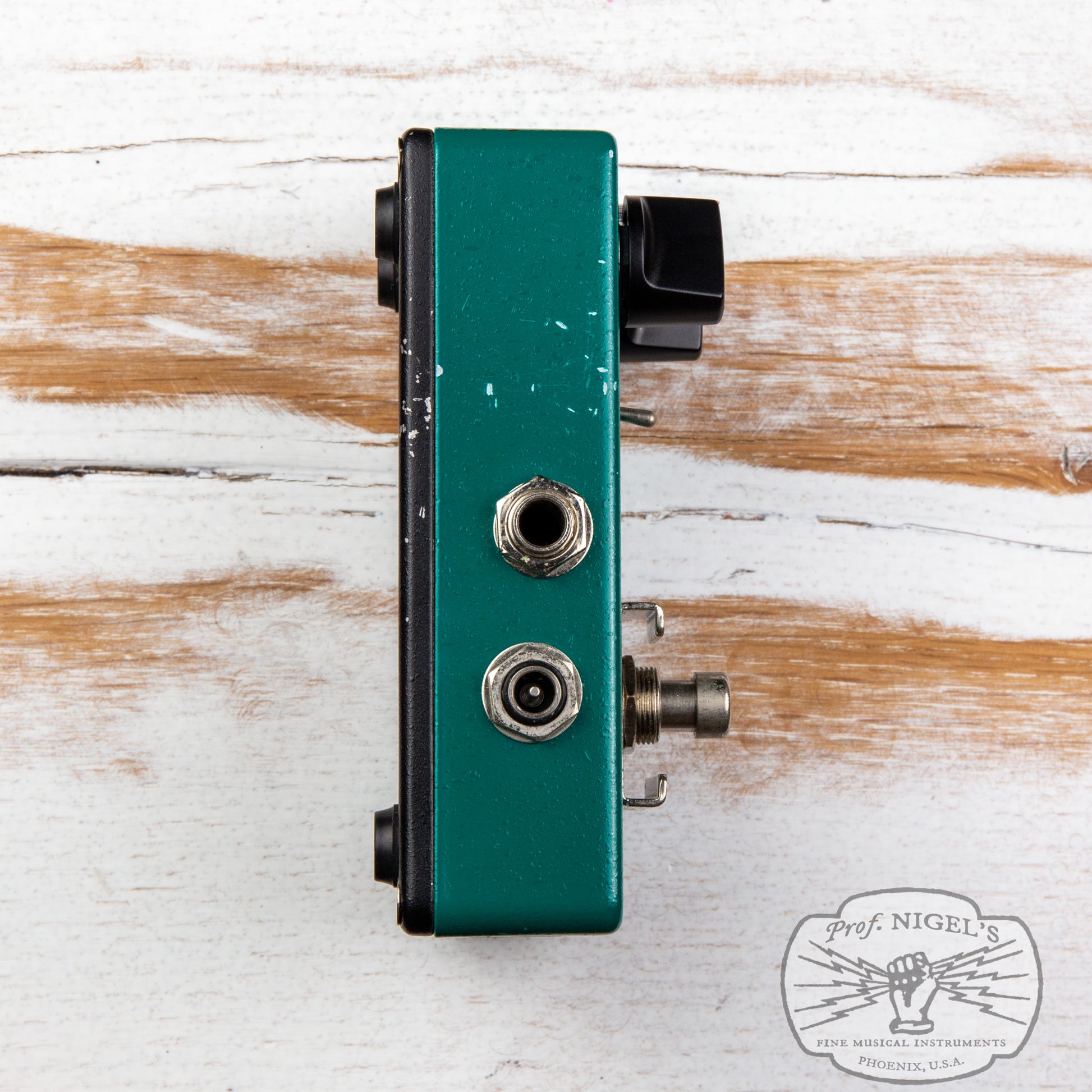

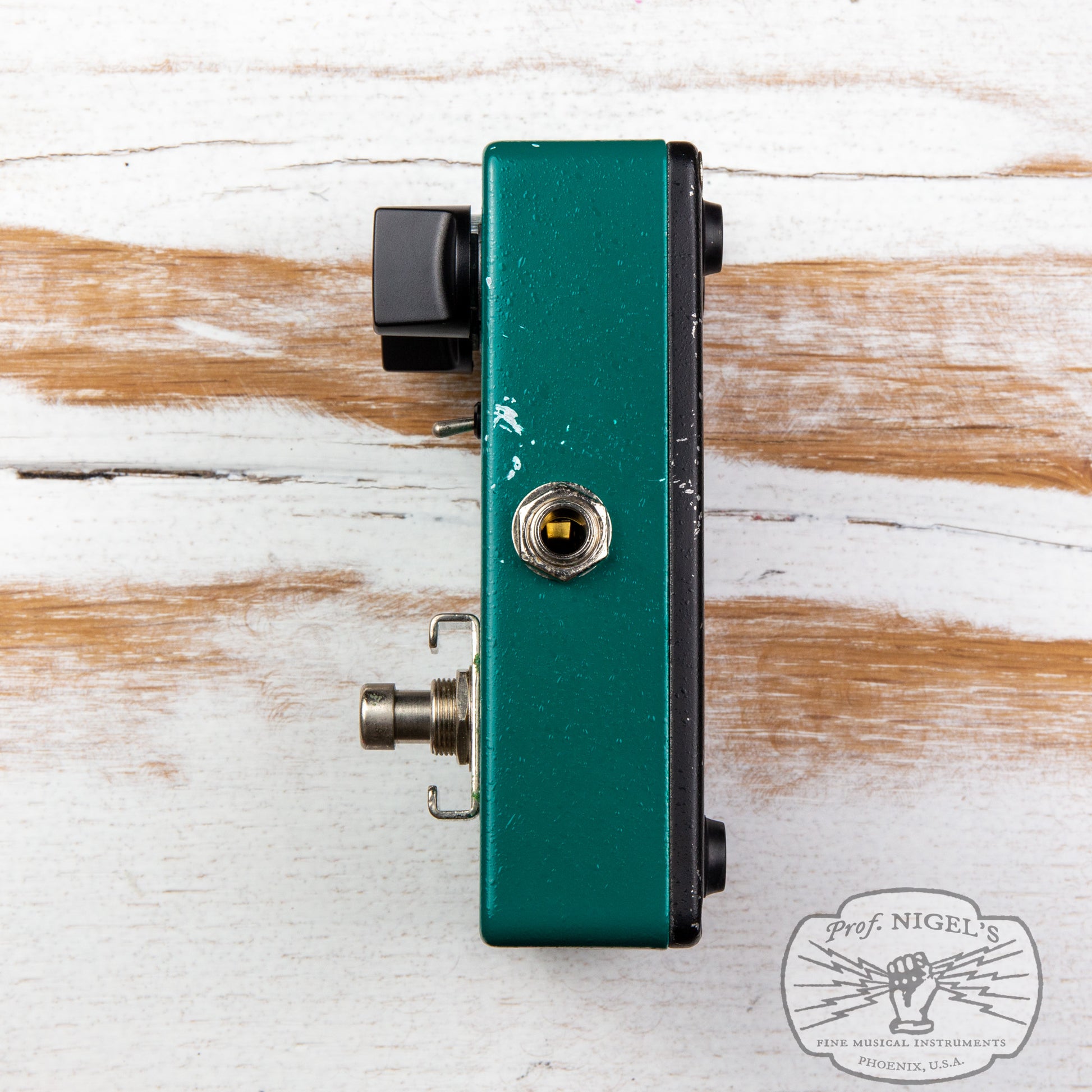

Connectors: 1/4-inch phone jack x 2 (INPUT and OUTPUT), DC 9V input jack (AC adaptor jack)

Power Supply: 9V battery or AC adaptor

Power Consumption: DC 9V, 5 mA approx. (effect ON)

Dimensions: 4.33 in (115mm) (D) x 2.83 in (72mm) (H) x 1.96 in (50mm) (H)

Weight: 250 g approx. (Not including battery)
